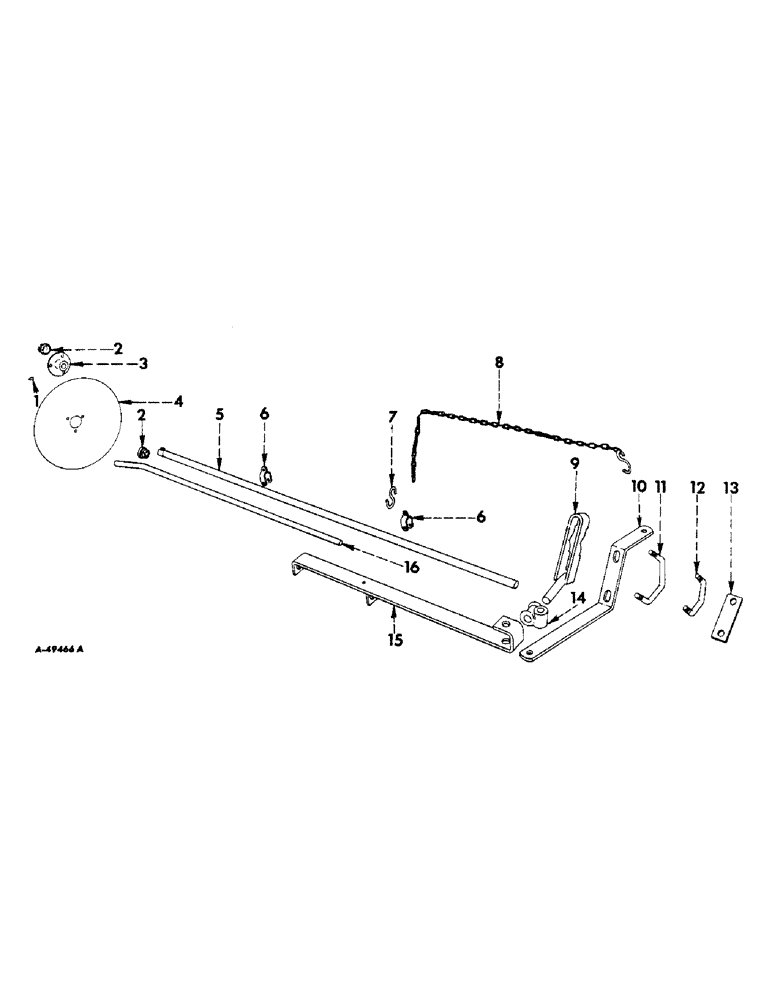

Запчасти Case IH 185 (B-29) - UNIVERSAL MARKER UNIT, DISK-TYPE, OPEN BEARING

1

110161

FITTING, 3/16 drive type straight lub.

1шт.

2

3786

BEARING WASHER

WASHER, hub

1шт.

3

PO1752A

HUB, disk

1шт.

RIVET, 5/16 x 7/8 rd-hd

3шт.

4

S3946

DISK, 1/4

1шт.

4

PO16198

DISK W/HUB

1шт.

5

525015R91

PIPE

1шт.

SCREW, 3/8 x 1 cup-pt sq-hd set

1шт.

6

4766

TUBE

EYE, rope

1шт.

BOLT W/NUT, 3/8 x 1-3/4 crg

1шт.

7

520841R1

HOOK, lift chain

2шт.

8

524723R91

CHAIN, lift, 48 links

1шт.

8

527104R91

CHAIN, pull, 75 links

1шт.

9

525017R91

BRACKET, support

1шт.

PIN, 1/4 x 1-1/2 x self-opening cot.

2шт.

10

525012R2

BRACKET, marker pull

1шт.

11

525020R11

U-BOLT W/ NUTS, for 3-1/4 sq tool bar

1шт.

NUT, 5/8

2шт.

12

477105R1

U-BOLT, for 1-3/4, 2, 2-1/4 and 2-1/2 sq tool bar

1шт.

NUT, 5/8

2шт.

WASHER, 5/8 lock

2шт.

13

525024R1

CLIP, support, for 3-1/4 sq tool bar

1шт.

BOLT W/NUT, 5/8 x 6-3/4 mach

2шт.

WASHER, 5/8 lock

2шт.

10620P

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

14

524622R1

BLOCK, pivot

1шт.

CP15696

PIN, 7/8 x 3-1/4 dld-std-hd

1шт.

PIN, 3/16 x 1-1/4 self-opening cot.

1шт.

15

525016R91

ARM, adjusting

1шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

1шт.

16

525007R1

AXLE, disk

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

2шт.
