Запчасти Case IH 185 (B-27) - SEMI-AUTOMATIC MARKER, DISK AND SHOE

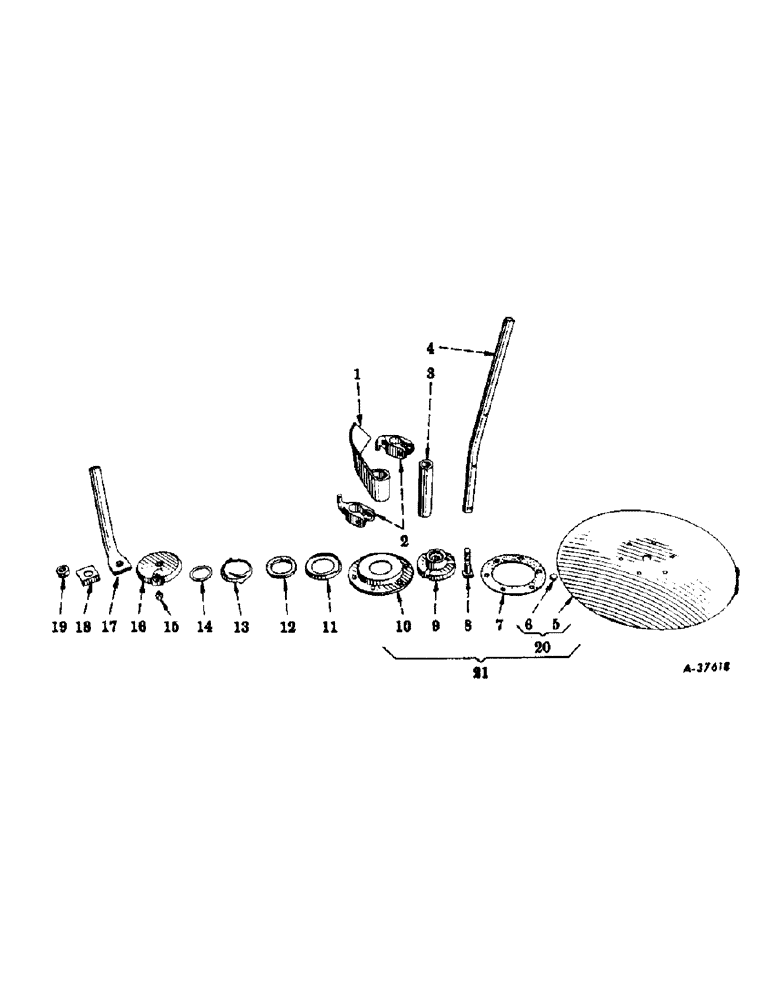

Схема запчастей Case IH 185 - (B-27) - SEMI-AUTOMATIC MARKER, DISK AND SHOE
13
18
3
21
1
7
9
20
2
5
6
14
10
18
5
19
4
11
12
15
17

Артикул

Название

Примечание

Количество

1

33754A

SHOE, marker left

1шт.

1

33753A

SHOE, marker right

1шт.

2

PO3232

COLLAR, shoe stop

1шт.

BOLT W/NUT, 3/8 x 1-3/4 crg

1шт.

3

512629R1

SLEEVE, shoe

1шт.

4

520597R1

AXLE, shoe marker

1шт.

PIN, 1/4 x 1-1/2 self-opening cot.

1шт.

5

N42976

DISC

DISK, marker, 13 dia

1шт.

6

N42900

PLUG, disk

1шт.

7

N62375

GASKET

disk paper

1шт.

8

620156R1

BOLT

1/2 unf x 2 sq-hd mach

1шт.

WASHER, 1/2 lock

1шт.

9

N2614

BLOCK

disk bearing

1шт.

10

N2615

HUB

disk

1шт.

13945R1

RIVET,Csk, 1/4" x 5/8"

1/4 x 5/8 rd-hd

6шт.

11

N2616

WASHER

RING, disk dust

1шт.

12

M10

FELT

WASHER, disk felt dust

1шт.

13

620075R1

RETAINER

felt washer spring left

1шт.

13

620076R1

RETAINER

felt washer spring right

1шт.

14

615991R1

WASHER

1-3/32 x 1-1/2 x 26 ga

1шт.

15

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

16

620479R1

CLAMP

HANGER, disk marker

1шт.

17

520598R1

SHAFT, disk marker bearing

1шт.

18

N32572

CLIP

disk bearing nut locking, Serial Range: 1954-1957

1шт.

19

25-118

NUT,1/2"-20, G5

1/2 unf

1шт.

20

NA42304

DISC

DISK W/PLUG

1шт.

21

620446R91

DISK ASSEMBLY

1шт.

Выбрано товаров: 27
