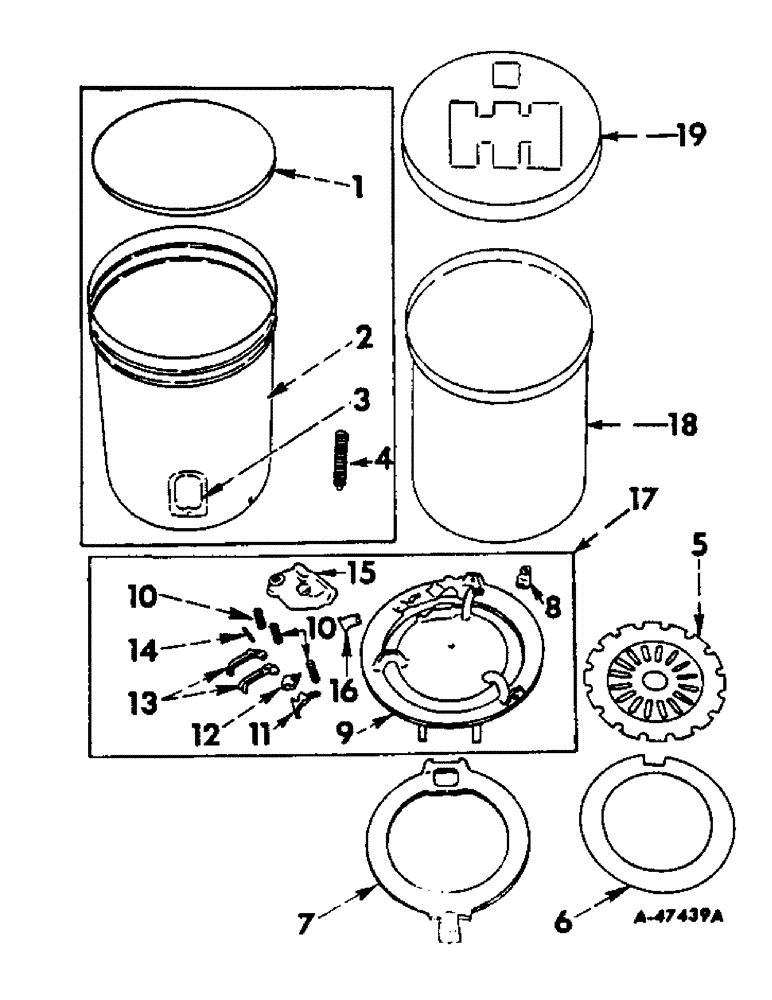

Запчасти Case IH 185 (B-18) - HOPPER WITH SEED VISION WINDOW

1

626451R91

LID, hopper, Serial Range: 1960-1964

1шт.

1

625234R91

LID, hopper, Serial Range: 1958-1960

1шт.

2

463225R11

HOPPER, seed, less window, Serial Range: 1960-1964

1шт.

2

524857R11

HOPPER, seed, less window, Serial Range: 1958-1960

1шт.

138198

ARM

SCREW, 5/16 x 3/8 C-Z slt-rd-hd mach

1шт.

3

624463R1

WINDOW

seed vision, Serial Range: 1958-1964

1шт.

4

P622016R1

SPRING, lid, Serial Range: 1958-1960

1шт.

5

PLATE, seed, see seed plates

1шт.

6

RING, filler, see filler rings

1шт.

7

468507R1

PLATE

reversible hopper bottom, for use with 463225R11 hopper

1шт.

7

626452R1

PLATE

reversible hopper bottom, 1959 and since

1шт.

7

624570R1

PLATE, reversible hopper bottom, corn only, 1958

1шт.

7

464256R1

WASHER

PLATE, filler, for use with 463426R1 and 463427R1 seed plates, 1960 and since

1шт.

8

625065R2

BUTTON

hopper bottom plate retainer

1шт.

RIVET, 1/4 x 1-5/8 b-hd

1шт.

9

BOTTOM, hopper, order bottom assy

1шт.

10

2064A

SPRING

cut-off and knocker, .445 OD, 1-5/8 long, 12 coils

1шт.

11

625772R21

ARM

roller knocker, beet only, 1960 and since

1шт.

11

464258R11

ARM

roller knocker, corn only, 1960 and since

1шт.

11

625068R1

PAWL

knock-out, regular, corn only, Serial Range: 1958-1960

1шт.

11

625776R2

PAWL

knock-out, special, corn only

1шт.

12

625066R1

KNOCKER

SEAT, adjustable knocker

1шт.

120583

SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"

1/4 x 5/8 C-Z slt-rd-hd mach

1шт.

WASHER, 1/4 lock

1шт.

WASHER, 9/32 x 5/8 x 16 ga

1шт.

13

625775R92

PAWL

S, cut-off, pair of inner and outer, beet only

1шт.

13

625539R91

PAWL

S, cut-off, pair of inner and outer, corn only

1шт.

14

2000AA

PIN

3/16 x 1-1/8 pawl cut-off hinge

1шт.

15

625069R3

CAP

cut-off and knocker

1шт.

BOLT W/NUT, 5/16 x 2 crg

1шт.

WASHER, 5/16 lock

1шт.

16

13607AB

HINGE

GATE, hopper bottom hinged, 1960 and since

1шт.

16

624711R2

GUIDE

GATE, hopper bottom hinged, Serial Range: 1958-1960

1шт.

17

464260R92

BOTTOM

ASSEMBLY, hopper, corn and bean only, for use with 463225R11 hopper

1шт.

17

464261R91

BOTTOM ASSEMBLY, hopper, beet only, 1960 and since

1шт.

17

625366R92

BOTTOM

ASSEMBLY, hopper, corn only, Serial Range: 1958-1960

1шт.

Q3429

DOWEL

PIN, 5/16 x 3-1/2 dld-std-hd

1шт.

PIN, 1/8 x 3/4 cot.

1шт.

18

474849R11

HOPPER ASSY, fiberglass small seed, 1964 and since

1шт.

133094

BRACKET

SCREW, 5/16-18 x 3/4 C-Z slt-rd-hd mach

3шт.

19

474850R2

COVER ASSY

COVER, polyethylene small seed hopper, 1964 and since

1шт.

3616AA

KNOCKER

seed plate roller, beet only, 1964 and since

1шт.

464259R1

ROLLER

KNOCKER, seed plate roller, corn only, 1960 and since

1шт.
