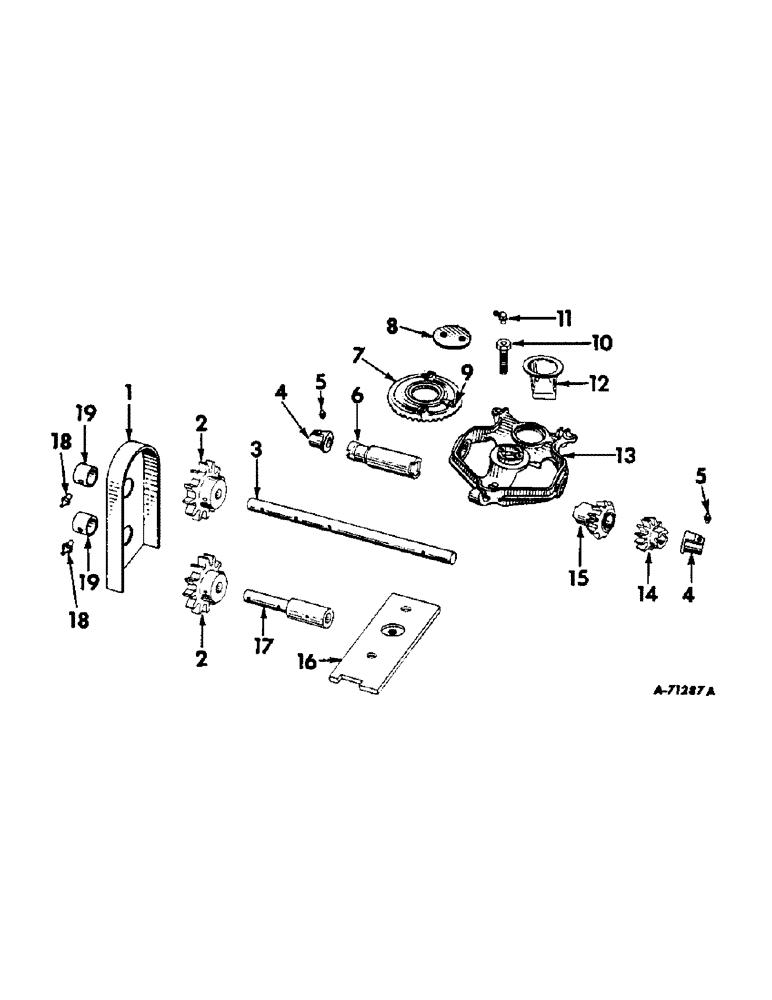

Запчасти Case IH 185 (B-10) - HOPPER BRACKET AND DRIVE SHAFT EXTENSION, FOR USE WITH COMBINATION STRAIGHT SIDE HOPPER

1

468187R11

COVER, gear

1шт.

2

468192R1

GEAR, adapter drive

2шт.

Q3516

PIN

1/4 x 2 dld-std-hd

2шт.

PIN, 1/8 x 3/4 self-opening cot.

2шт.

3

524952R1

SHAFT, feed

1шт.

33405A

WASHER

WASHER, 25/32 x 1-1/8 x 22 ga

3шт.

4

PO2507

BEARING

feed shaft

2шт.

5

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

622123R2

BLOCK DRIVER

SLEEVE, hopper drive

1шт.

7

622120R21

GEAR

W/FITTING, double ring

1шт.

8

462502R1

RETAINER

WASHER, gear retaining

1шт.

113989

1/4 x 5/8 slt-fl-hd mach

2шт.

WASHER, 1/4 external-tooth lock

2шт.

9

110161

FITTING, 3/16 straight drive type lub.

1шт.

10

468191R1

BOLT, adapter

1шт.

11

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

12

468195R1

TUBE

combination hopper adapter seed

1шт.

13

462500R2

FRAME

BRACKET, hopper

1шт.

BOLT, 5/16 x 2-1/4 C-Z mach

2шт.

BOLT, 1/2 x 2-1/4 mach

2шт.

NUT, 1/2

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing

2шт.

WASHER, 1/2 lock

2шт.

14

622122R2

GEAR

PINION, 12T, order 471196R1

1шт.

14

471196R1

GEAR WHEEL

PINION, 12T

1шт.

15

622121R2

PINION

10T

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-st-hd

1шт.

PIN, 1/8 x 3/4 self-opening cot.

1шт.

16

468189R11

PLATE, combination hopper adapter

1шт.

17

468194R1

EXTENSION, drive shaft

1шт.

PIN, 3/16 x 1-1/2 self-opening cot.

1шт.

WASHER, 25/32 x 1-1/4 x 6 ga

2шт.

18

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 straight self-tapping lub.

2шт.

19

454155R2

BUSHING

steel back brg split

2шт.
