Запчасти Case IH 185 (B-08[B]) - MOUNTING BRACKETS PARTS TO MOUNT TWO 185 PLANTER UNITS ON THE PITTSBURG FORGING CULITVATOR, 1963 AND SINCE

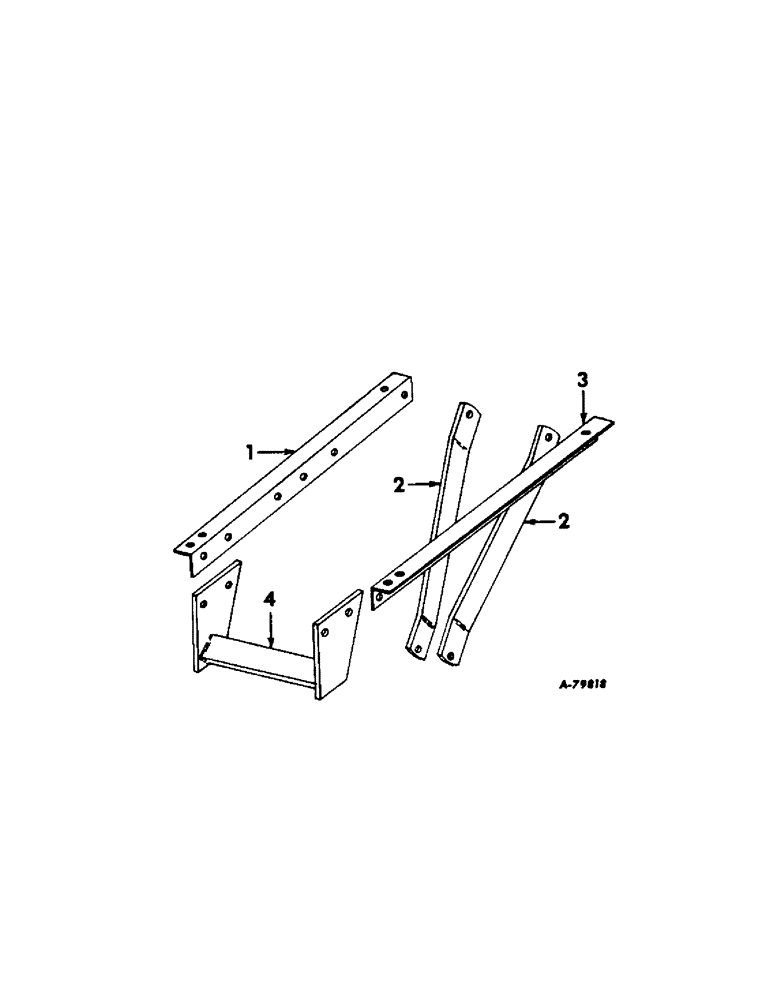

Схема запчастей Case IH 185 - (B-08[B]) - MOUNTING BRACKETS PARTS TO MOUNT TWO 185 PLANTER UNITS ON THE PITTSBURG FORGING CULITVATOR, 1963 AND SINCE
2
1
3
2
4

Артикул

Название

Примечание

Количество

1

463192R3

ANGLE, LH support

2шт.

NUT, 7/16

4шт.

SCREW, 7/16 x 1-1/4 cap

4шт.

WASHER, 7/16 lock

4шт.

2

471429R1

BRACE, planter mounting

4шт.

NUT, 1/2 C-Z

16шт.

SCREW, 1/2 x 1-1/4 C-Z cap

12шт.

SCREW, 1/2 x 1-3/4 C-Z cap

4шт.

WASHER, 1/2 C-Z lock

16шт.

3

463193R3

ANGLE, RH support

2шт.

NUT, 7/16

4шт.

SCREW, 7/16 x 1-1/4 cap

4шт.

WASHER, 7/16 lock

4шт.

4

471430R91

BRACKET ASSY, mounting

2шт.

NUT, 7/16

4шт.

SCREW, 7/16 x 1-1/4 cap

4шт.

WASHER, 7/16 lock

4шт.

Выбрано товаров: 17
