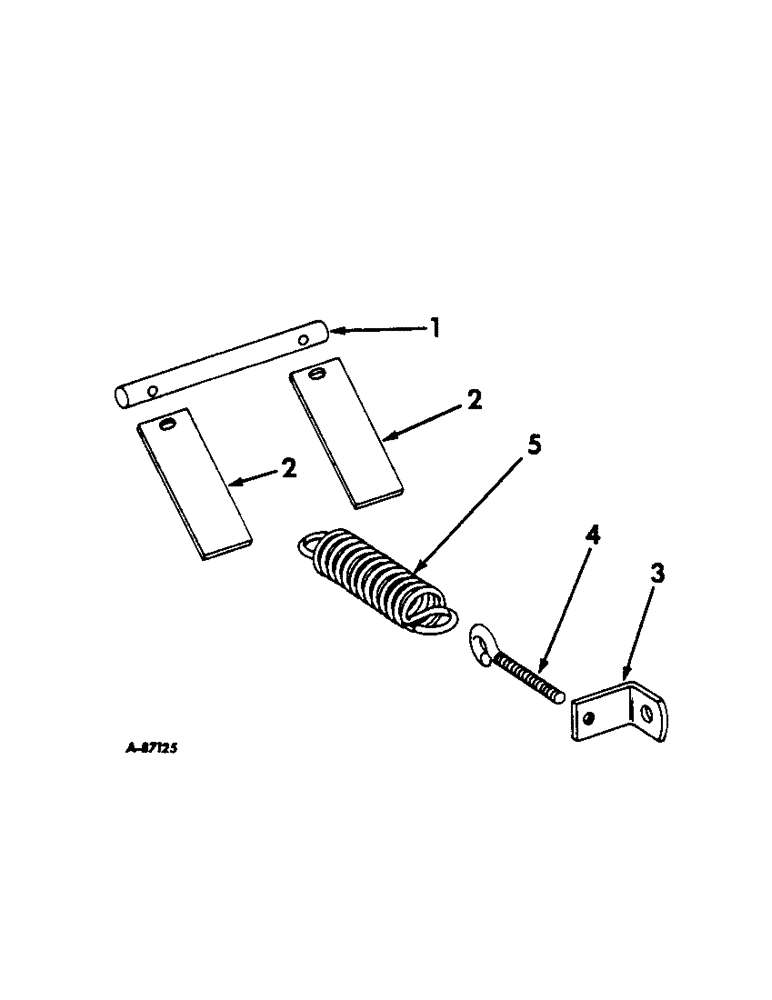

Запчасти Case IH 185 (B-07[B]) - DEPTH SPRING AND SCRAPER ATTACHMENT

1

524669R1

PIN, scraper

1шт.

NLS

NO LONGER SERVICED

3/8 x 7/8 sq-hd cup-pt

1шт.

2

625725R1

BAR

SCRAPER, depth

2шт.

17445R1

BOLT,Hex, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

2шт.

3

524685R1

BRACKET, depth spring

1шт.

4

S4808

BOLT

EYEBOLT, depth spring

1шт.

102635

NUT,3/8"-16, G5

2шт.

5

524660R1

VALVE SPRING

SPRING, depth

1шт.
