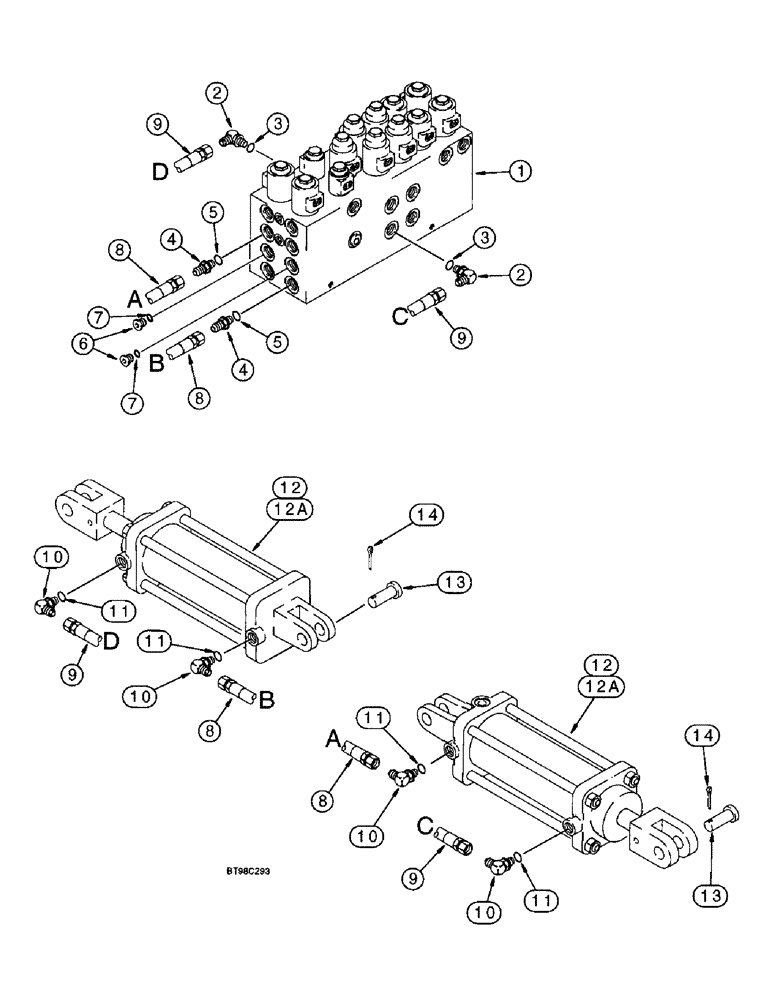

Запчасти Case IH 955 (8-087A) - HYDRAULIC FOLD SYSTEM, W/ HYDRAFORCE CONTROL VALVE, 24 ROW FRONT FOLD PLANTERS BUILT SEP 97 & AFTER (08) - HYDRAULICS

1

300702A1

VALVE

ASSEMBLY - control, parts list page 8-159B, see page 8-35 for mounting

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

- Valve to fold cylinder, Closed end 6.35 mm ID x 1195.00 mm

2шт.

9

1277717C1

HYDRAULIC HOSE,6.35 mm ID x 1525.00 mm

- Valve to fold cylinder, Rod end 6.35 mm ID x 1525.00 mm

2шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

127700A2

CYLINDER

ASSEMBLY - 127 (5) ID x 508 mm (20 inch) stroke, wing folding

2шт.

12a

255442A1

SEAL KIT

- seal, includes wear rings

1шт.

13

145282C1

CLEVIS PIN

PIN - headed, 1-1/4 x 3-1/2 inch

4шт.

14

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
