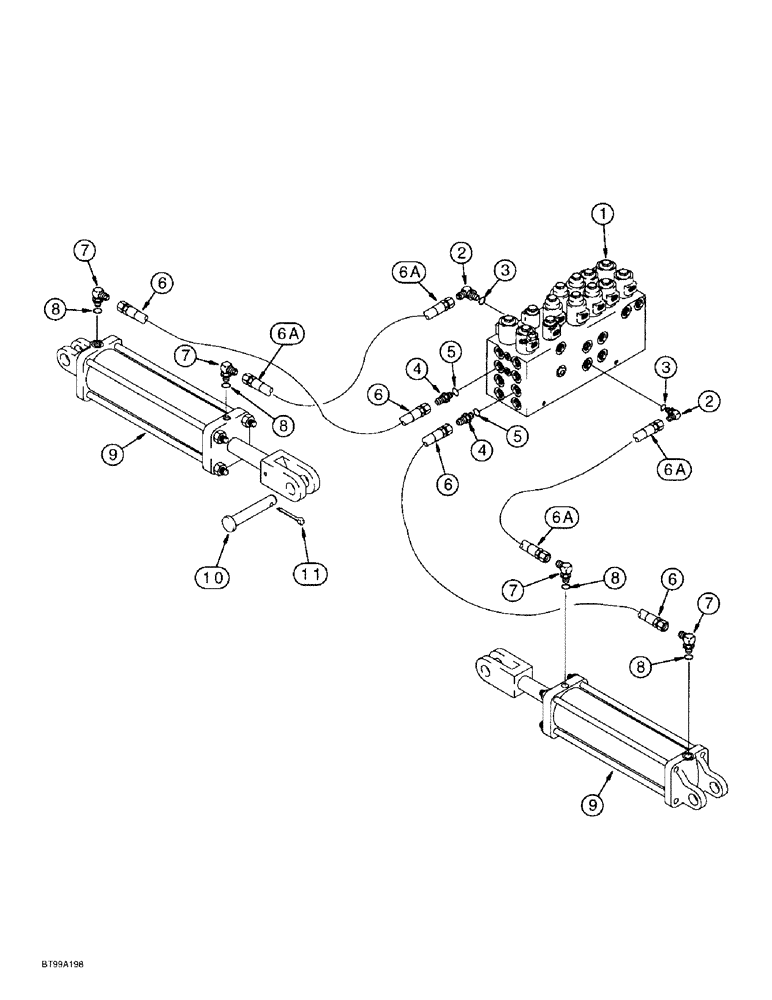

Запчасти Case IH 955 (8-083A) - HYDRAULIC FOLD SYSTEM, W/ HYDRAFORCE CONTROL VALVE, (UNITS W/LIQUID FERTILIZER ATT) 12/23 SOLID ROW (08) - HYDRAULICS

1

240737A2

VALVE

ASSEMBLY - control, parts list page 8-155B, see page 8-37 for mounting

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1969386C1

HOSE

- 584 mm (23 inch) long, valve to fold cylinder, closed end

2шт.

6a

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

Valve to fold cylinder, Rod end 0.25" ID x 33.00"

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke, wing folding, parts list 8-125

2шт.

10

145282C1

CLEVIS PIN

PIN - headed, 1-1/4 x 3-1/2 inch

4шт.

11

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
