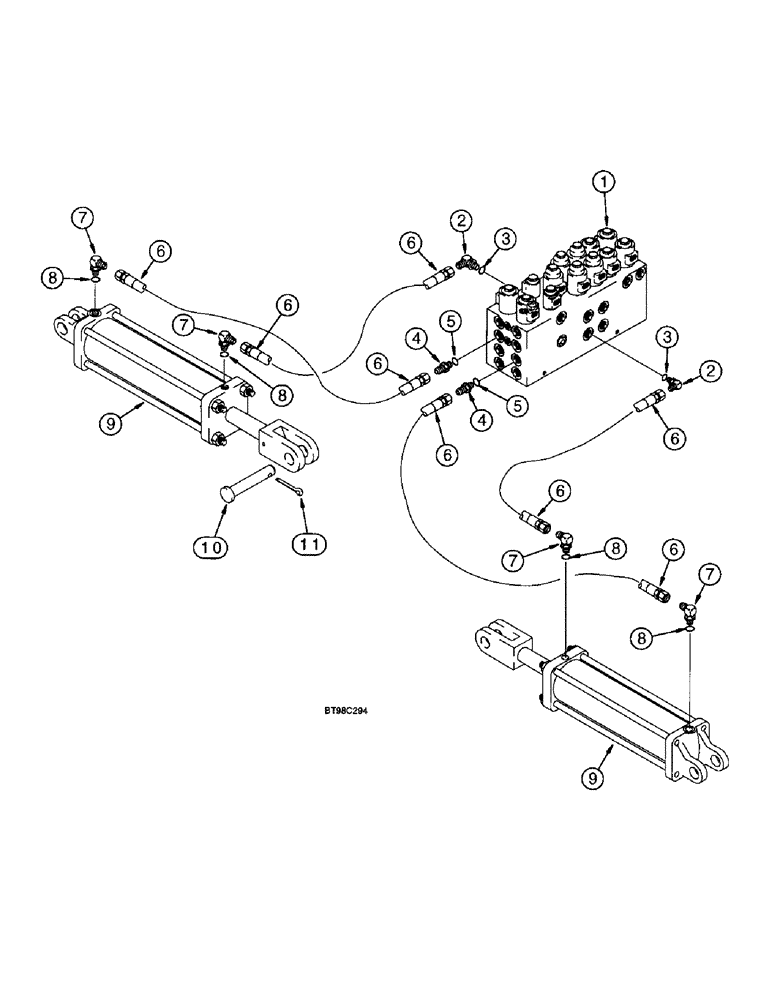

Запчасти Case IH 955 (8-081A) - HYDRAULIC FOLD SYSTEM, W/ HYDRAFORCE CONTROL VALVE PLANTERS BUILT SEP 97 & AFTER (08) - HYDRAULICS

1

240737A2

VALVE

ASSEMBLY - control, 12 row narrow, 12 row wide, and 16 row narrow, parts list page 8-155B, see page 8-33 for mounting

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

810604C1

HYDRAULIC HOSE

HOSE - 735 mm (29 inch) long, valve to fold cylinder, rod and closed ends

4шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke, wing folding, 16 row narrow and 12 row wide, parts list 8-125

2шт.

9

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke, wing folding, 12 row narrow

2шт.

9

1272149C92R

REMAN-HYD CYLINDER

955 CASE IH TRAILING PLANTER, ASSEMBLY, wing folding, 12 row narrrow (10/95-)

2шт.

9

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

9a

79978C2

SEAL KIT

KIT - seal, repair, not shown

1шт.

10

145282C1

CLEVIS PIN

PIN - headed, 1-1/4 x 3-1/2 inch

4шт.

11

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

4шт.
