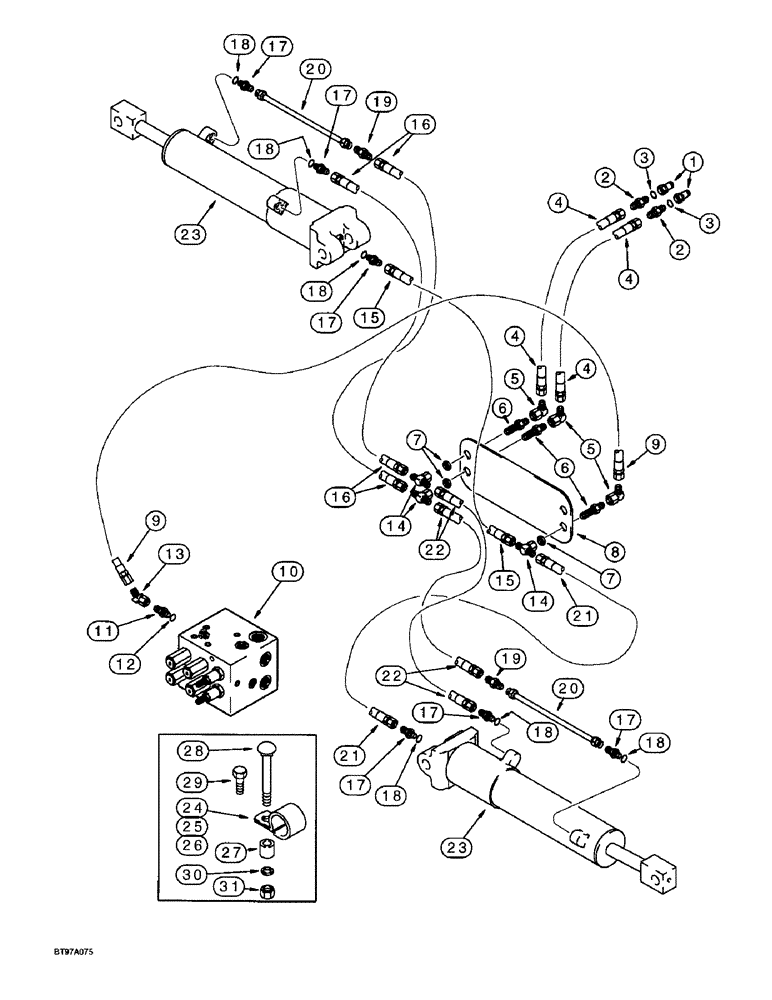

Запчасти Case IH 955 (8-078) - WING FRAME HYDRAULIC SYSTEM, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD (08) - HYDRAULICS

1

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

2шт.

2

91165C1

RESTRICTOR

ADAPTER - special, restrictor

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

1978105C1

HYDRAULIC HOSE

HOSE - 5715 mm (225 inch) long, tractor pressure and return for wing fold

2шт.

5

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

3шт.

6

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

3шт.

7

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

8

119984C1

BAR

PLATE - bulkhead, hydraulic hose

1шт.

9

90875C1

HYDRAULIC HOSE

HOSE - 737 mm (29 inch) long, return

1шт.

10

138295A2

VALVE

ASSEMBLY - planter control, parts list page 8-161

1шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss (Port "F" of control valve)

1шт.

13

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

1шт.

14

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel branch x flare x flare

3шт.

15

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- Tee to LH lift cylinder, Piston end (12 row narrow planter) 12.70 mm ID x 1650.00 mm

1шт.

15

31-1228

HYDRAULIC HOSE

HOSE - 1118 mm (44 inch) long, tee to left-hand lift cylinder, piston end (8 row wide planter)

1шт.

16

90874C1

HYDRAULIC HOSE

HOSE - 1397 mm (55 inch) long, tee to left-hand wing cylinder (8 row wide and 12 row narrow planter)

2шт.

17

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

6шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, 3/4-16 inch flare

2шт.

20

100303C1

HYD TUBE,322.6 mm Length

TUBE - hose to cylinder rod end

2шт.

21

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 1270 mm (50 inch) long, tee to right-hand lift cylinder, piston end (12 row narrow planter)

1шт.

21

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long, tee to right-hand lift cylinder, piston end (8 row wide planter)

1шт.

22

1301966C2

HYDRAULIC HOSE

HOSE - 1778 mm (70 inch) long, tee to right-hand wing cylinder (12 row narrow planter)

2шт.

22

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, tee to right-hand wing cylinder (8 row wide planter)

2шт.

23

113978C93

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 305 mm (12 inch) stroke, two stage, wing lift (Parts list page 8-121)

2шт.

24

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

26

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

27

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

1шт.

28

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

1шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

30

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

31

425-106

NUT,3/8"-16, Cl 5

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
