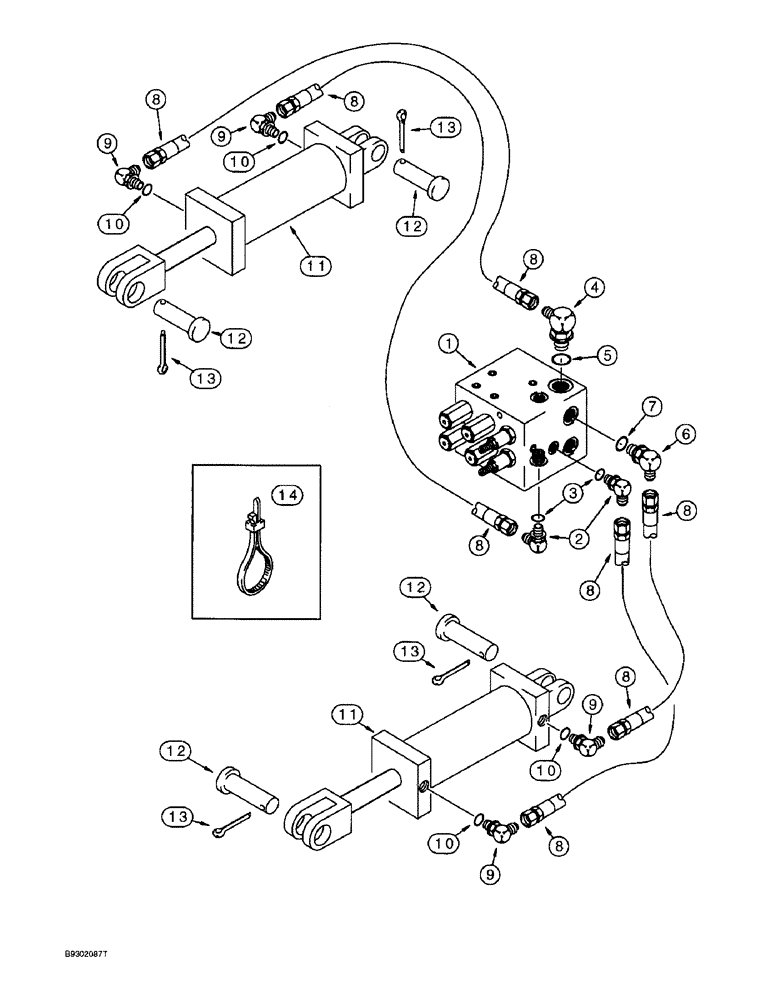

Запчасти Case IH 955 (8-076) - ASSIST WHEEL HYDRAULIC SYSTEM, 8 ROW WIDE AND 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS

1

138295A2

VALVE

ASSEMBLY - planter control, parts list page 8-161

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss (Ports "A1 and "A2" of control valve)

2шт.

4

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss (Port "L2" of control valve)

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (Port "L3" of control valve)

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Valve to Assist Wheel Cylinder (12 Row Narrow Planter) 12.70 mm ID x 2540.00 mm, SAE 100R1

4шт.

8

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Valve to Assist Wheel Cylinder (8 Row Wide Planter) 12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

92916C91

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, assist wheel, parts list page 8-119

2шт.

12

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

4шт.

13

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
