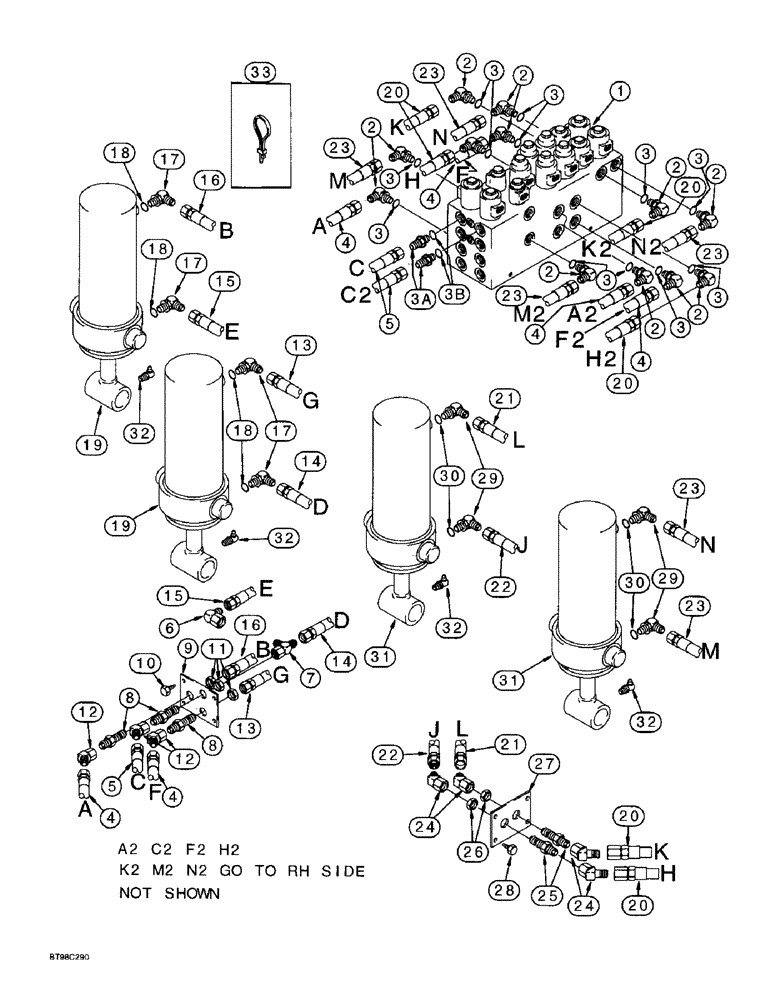

Запчасти Case IH 955 (8-067A) - CARRYING WHEEL HYDRAULIC CIRCUIT, W/ HYDRAFORCE CONTROL VALVE 24 ROW NARROW FRONT FOLD PLANTERSBUILT (08) - HYDRAULICS

1

300702A1

VALVE

ASSEMBLY - control, 24 row narrow, parts list page 8-159B

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

12шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3a

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

3b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

134210A1

HOSE

- 9271 mm (365 inch) long, valve to inner and outer slave cylinders, closed end

4шт.

5

134210A1

HOSE

- 9271 mm (365 inch) long, valve to outer and inner slave cylinders, rod end

2шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

2шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

2шт.

8

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

6шт.

9

302945A1

PLATE

- hose mounting, three hole

2шт.

10

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

6шт.

12

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

6шт.

13

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Inner Slave Cylinders, Closed End 12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

14

1344615C1

HYDRAULIC HOSE

HOSE - 535 mm (21 inch) long, inner slave cylinders, rod end

2шт.

15

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Outer Slave Cylinders, Rod End 12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

16

1336924C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long, outer slave cylinders, closed end

2шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

8шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

233760A2

CYLINDER

ASSEMBLY - 102 (4) ID x 184 mm (7-1/4 inch) stroke, carrying wheel, slave, parts list page 8-109

4шт.

20

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Valve to Outer Master Cylinders, Closed and Rod End 12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

21

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long, outer master cylinder, closed end

2шт.

22

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

outer master cylinder, rod end 12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.

23

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

HOSE - 1270 mm (50 inch) long, valve to inner master cylinders, closed and rod end

4шт.

24

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

8шт.

25

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

26

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

27

133467A1

PLATE

- hose mounting

2шт.

28

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

8шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

233761A2

CYLINDER

ASSEMBLY - 108 (4-1/4) ID x 184 mm (7-1/4 inch) stroke, carrying wheel, master, parts list page 8-111

4шт.

32

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

8шт.

33

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
