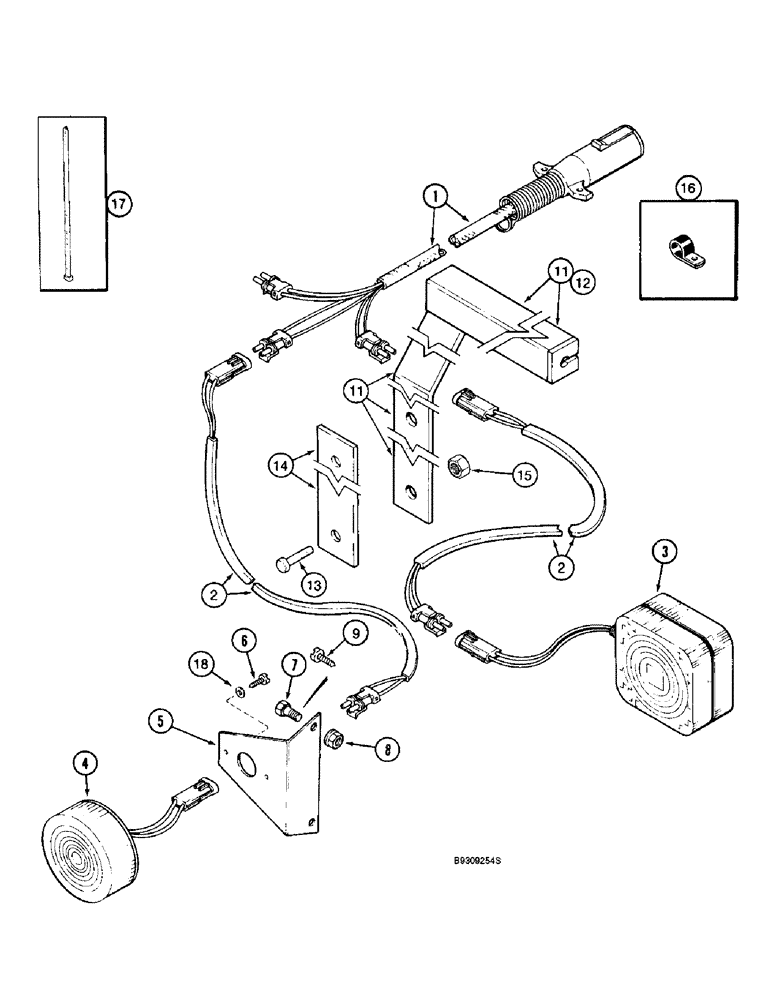

Запчасти Case IH 955 (4-04) - LIGHTING SYSTEM, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (04) - ELECTRICAL SYSTEMS

1

92093C2

HARNESS

- main

1шт.

2

92096C1

CABLE ASSY.

HARNESS - lamp

3шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal (Parts list page 4-13)

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail (Parts list page 4-13)

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

for SMV bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

231-5146

FLANGE NUT,3/8"-16

for SMV bracket mounting Flg, USR, 3/8"-16

2шт.

9

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

- hex head, self-tapping, 5/16 NC x 13/16 inch, for module mounting

2шт.

11

1333944C3

BRACKET

- lamp support, left-hand

1шт.

12

1333945C3

BRACKET

- lamp support, right-hand

1шт.

13

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

14

109025A1

BAR

- support bracket

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

16

384557R1

CLIP

CLAMP - P-type, harness retaining

4шт.

17

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

6шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
