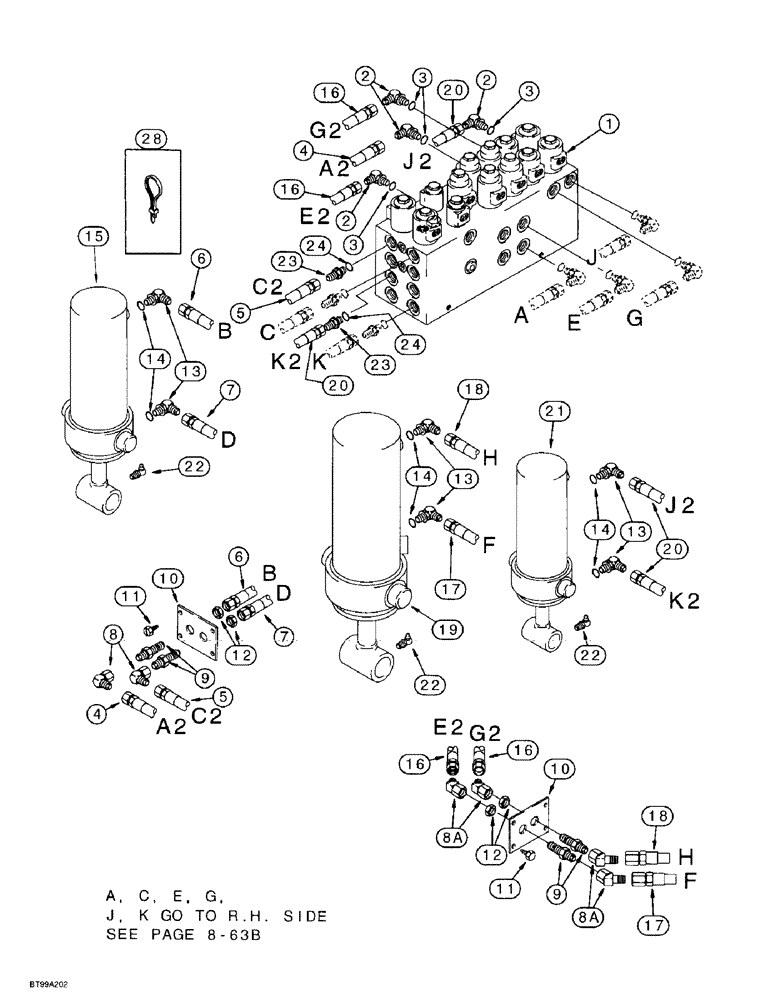

Запчасти Case IH 955 (8-063C) - CARRYING WHEEL HYDRAULIC CIRCUIT, LEFT HAND FRAME & CENTER FRAME W/HYDRAFORCE CONTROL VALVE (08) - HYDRAULICS

1

240737A2

VALVE

ASSEMBLY - control, parts list page 8-155B

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HYDRALUIC HOSE, , Valve to Wing Frame Cylinder, Closed End 12.70 mm ID x 4955.00 mm, SAE 100R1

1шт.

5

90685C1

HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1

Valve to Wing Frame Cylinders, Rod End 12.70 mm ID x 4825.00 mm, SAE 100R1

1шт.

6

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long, cylinder, closed end (units without liquid fertilizer attachment)

1шт.

6

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Cylinder, Closed End (Units with Liquid Fertalizer Attachment) 12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

7

1344615C1

HYDRAULIC HOSE

HOSE - 535 mm (21 inch) long, cylinder, rod end (units without liquid fertilizer attachment)

1шт.

7

1336924C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long, cylinder, rod end (units with liquid fertilizer attachment)

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

2шт.

8a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

4шт.

9

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

10

133467A1

PLATE

- hose mounting

2шт.

11

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

12

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

6шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

233761A2

CYLINDER

ASSEMBLY - 108 (4-1/4) ID x 184 mm (7-1/4 inch) stroke, wing frame carrying wheel, parts list page 8-111

1шт.

16

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Valve to Center Frame Outer Cylinder, Closed End and Rod End 12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

17

1344615C1

HYDRAULIC HOSE

HOSE - 535 mm (21 inch) long, bulkhead plate to center frame outer cylinder, rod end

1шт.

18

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long, bulkhead plate to center frame outer cylinder, closed end

1шт.

19

247402A2

CYLINDER

ASSEMBLY - 121 (4-3/4) ID x 184 mm (7-1/4 inch) stroke, center main frame, outer carrying wheel, parts list page 8-113B

1шт.

20

31-1228

HYDRAULIC HOSE

HOSE - 1118 mm (44 inch) long, valve to center frame inner cylinder, closed end and rod end

2шт.

21

233760A2

CYLINDER

ASSEMBLY - 102 (4) ID x 184 mm (7-1/4 inch) stroke, center main frame, inner carrying wheel, parts list page 8-109

1шт.

22

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

3шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

1шт.
