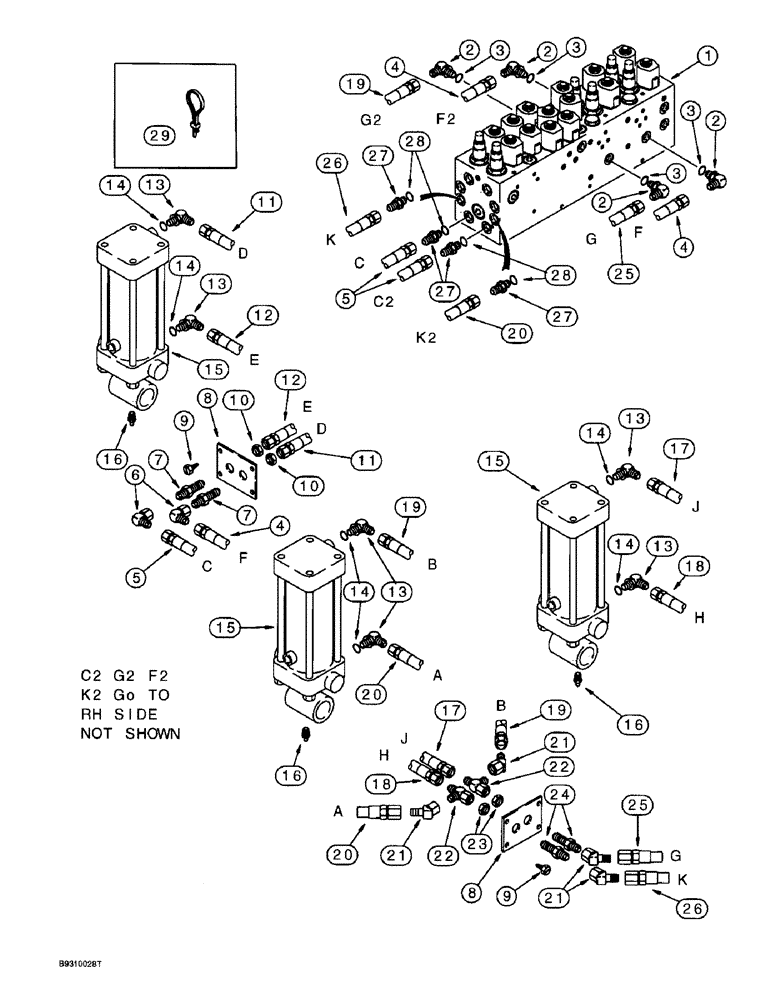

Запчасти Case IH 955 (8-060) - CARRYING WHEEL HYDRAULIC CIRCUIT, W/ VICKERS CONTROL VALVE PLANTERS BUILT UP TO AUG 97 16 ROW NARROW (08) - HYDRAULICS

1

117311A3

VALVE

ASSEMBLY - control, 16 row narrow, parts list page 8-155

1шт.

2

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss

4шт.

4

118813A1

HOSE

- 6223 mm (245 inch) long, valve to outer cylinders, closed end

2шт.

5

1978105C1

HYDRAULIC HOSE

HOSE - 5715 mm (225 inch) long, valve to outer cylinders, rod end

2шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

4шт.

7

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

8

133467A1

PLATE

- hose mounting

4шт.

9

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

8шт.

10

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

11

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Cylinder, Closed End 12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

12

1336924C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long, cylinder, rod end

2шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

12шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

113820A1

CYLINDER,Double Acting, 31.75mm Rod, 158.75mm Stroke

ASSEMBLY - 83 (3-1/4) ID x 159 mm (6-1/4 inch) stroke, carrying wheel, parts list page 8-107

6шт.

16

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

6шт.

17

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Cylinder, Closed End 12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

18

1336924C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long, cylinder, rod end

2шт.

19

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long, cylinder, closed end

2шт.

20

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

cylinder, rod end 12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.

21

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

8шт.

22

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

4шт.

23

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

24

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

25

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Valve to Innter Cylinders, Closed End 12.70 mm ID x 2030.00 mm, SAE 100R1

2шт.

26

168132C2

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

- Valve to inner cylinders, Rod end 12.70 mm ID x 1650.00 mm

2шт.

27

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss

4шт.

29

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
