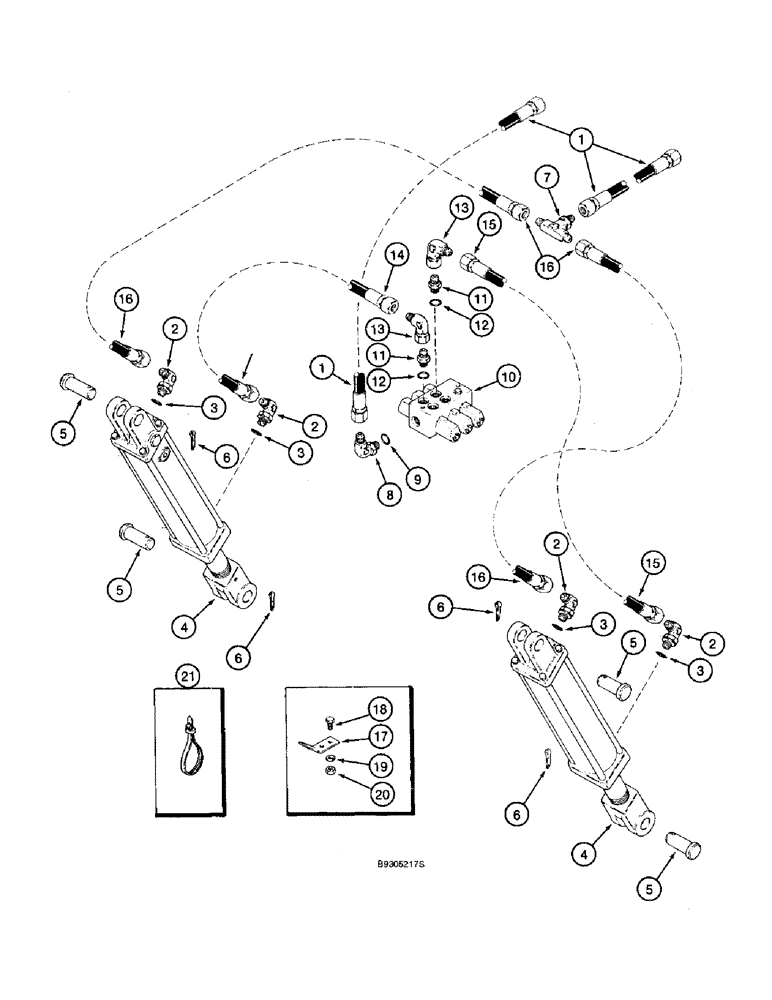

Запчасти Case IH 955 (8-058) - DRIVE/GAUGE WHEEL LIFT HYDRAULIC SYSTEM, 12 ROW NARROW - PARALLEL FRONT FOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
1337374C1
HYDRAULIC HOSE
HOSE - 6858 mm (270 inch) long
2шт.
2
218-5128
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss
4шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
1282326C92
HYDRAULIC CYLINDER
CYLINDER ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke, wheel lift, parts list page 8-115
2шт.
5
145282C1
CLEVIS PIN
PIN - headed, 1-1/4 x 3-1/2 inch
4шт.
6
432-1632
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
4шт.
7
218-1575
TEE,37 Degree, 9/16"-18 x 3/4"-16, Br
- 3/4-16 flare branch x 9/16-18 inch flare x flare
1шт.
8
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss
1шт.
9
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
10
93188C1
VALVE
ASSEMBLY - solenoid, wheel lift, see page 8-57, items 7A, 7B and 7C for serviceable components
1шт.
11
218-5058
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss
2шт.
12
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
13
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
- 90 degree, 9/16-18 inch flare x swivel
2шт.
14
1284255C1
HYDRAULIC HOSE,9.53mm ID x 4700mm L
HOSE - 4700 mm (185 inch) long
1шт.
15
133933C2
HYDRAULIC HOSE
HOSE - 6604 mm (260 inch) long
1шт.
16
1284329C1
HYDRAULIC HOSE
HOSE - 5207 mm (205 inch) long
2шт.
17
1985955C1
SUPPORT
- hose
10шт.
18
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
10шт.
20
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
10шт.
21
306132C1
CABLE TIE,14.5" L
STRAP - tie, 14 inch
1шт.
Выбрано товаров: 21
