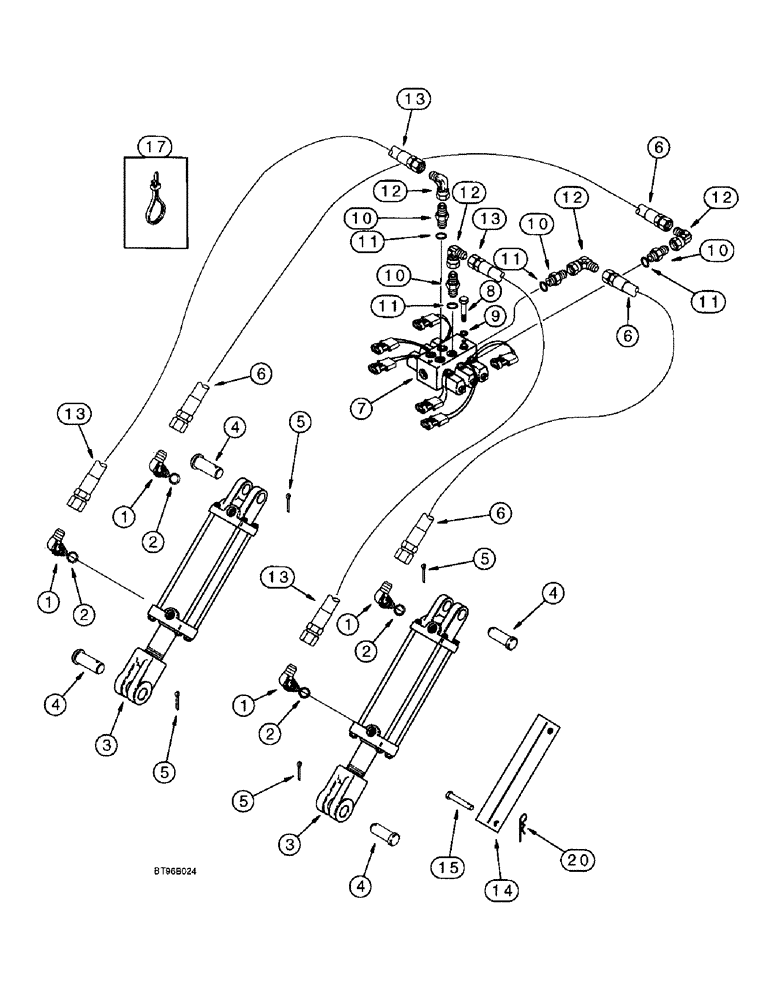

Запчасти Case IH 955 (8-056) - CART WHEEL LIFT HYDRAULIC SYSTEM, 12 ROW NARROW - PARALLEL FRONT FOLD (08) - HYDRAULICS

1

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1282326C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke, wheel lift, parts list page 8-115

2шт.

4

145282C1

CLEVIS PIN

PIN - headed, 1-1/4 x 3-1/2 inch

4шт.

5

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4шт.

6

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

HOSE - 508 mm (20 inch) long

2шт.

7

93188C1

VALVE

ASSEMBLY - solenoid, wheel lift

1шт.

7a

149942C1

SEAL KIT

KIT - seal replacement, not shown

1шт.

7b

93209C1

KIT

- solenoid coil, not shown

1шт.

7c

93208C1

VALVE

CARTRIDGE - valve, not shown

1шт.

8

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

4шт.

13

129672C2

HYDRAULIC HOSE

HOSE - 991 mm (39 inch) long

2шт.

14

1960428C1

STOP

CHANNEL - cylinder stop

2шт.

15

439-1644

HEADED PIN,3/8" x 2 3/4"

PIN - headed, 3/8 x 2-3/4 inch, grade 2

4шт.

16

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair, cotter

4шт.

17

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
