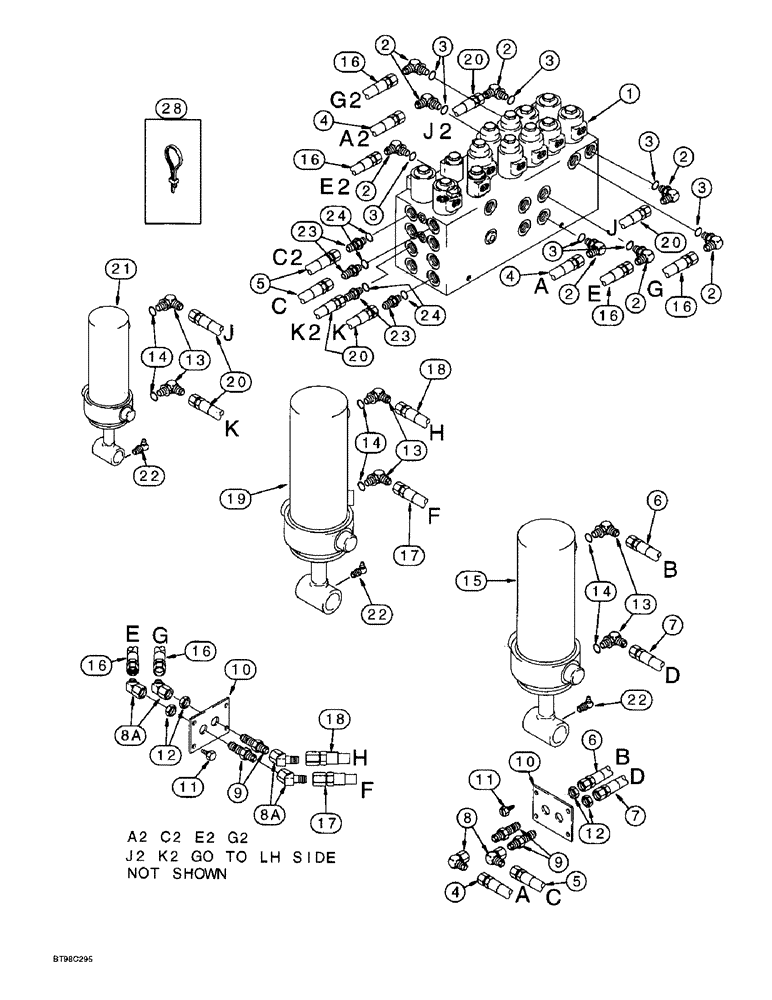

Запчасти Case IH 955 (8-055A) - CARRYING WHEEL HYDRAULIC CIRCUIT, W/ HYDRAFORCE CONTROL VALVE PLANTERS BUILT SEP 97 & AFTER 12 ROW (08) - HYDRAULICS

1

240737A2

VALVE

ASSEMBLY - control, parts list page 8-155B

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

8шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

91205C1

HYDRAULIC HOSE,12.70 mm ID x 5335.00 mm, SAE 100R1

Valve to Wing Frame Cylinders, Closed End 12.70 mm ID x 5335.00 mm, SAE 100R1

2шт.

5

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HYDRALUIC HOSE, , Valve to Wing Frame Cylinders, Rod End 12.70 mm ID x 4955.00 mm, SAE 100R1

2шт.

6

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Cylinder, Closed End 12.70 mm ID x 585.00 mm, SAE 100R1

2шт.

7

1336924C1

HYDRAULIC HOSE

HOSE - 686 mm (27 inch) long, cylinder, rod end

2шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

4шт.

8a

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

8шт.

9

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

8шт.

10

133467A1

PLATE

- hose mounting

4шт.

11

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

8шт.

12

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

8шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

12шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

233761A2

CYLINDER

ASSEMBLY - 108 (4-1/4) ID x 184 mm (7-1/4 inch) stroke, wing frame carrying wheel, parts list page 8-111

2шт.

16

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Valve to Center Frame Outer Cylinder, Closed End and Rod End 12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

17

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

bulkhead plate to center frame outer cylinder, rod end 12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.

18

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long, bulkhead plate to center frame outer cylinder, closed end

2шт.

19

233762A1

CYLINDER

ASSEMBLY - 114 (4-1/2) ID x 184 mm (7-1/4 inch) stroke, center main frame, outer carrying wheel, parts list page 8-113

2шт.

20

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE - 1397 mm (55 inch) long, valve to center frame inner cylinder, closed end and rod end

4шт.

21

298978A1

CYLINDER

ASSEMBLY - 83 (3-1/4) ID x 184 mm (7-1/4 inch) stroke, center main frame, inner carrying wheel, parts list page 8-107D

2шт.

22

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

6шт.

23

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

4шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
