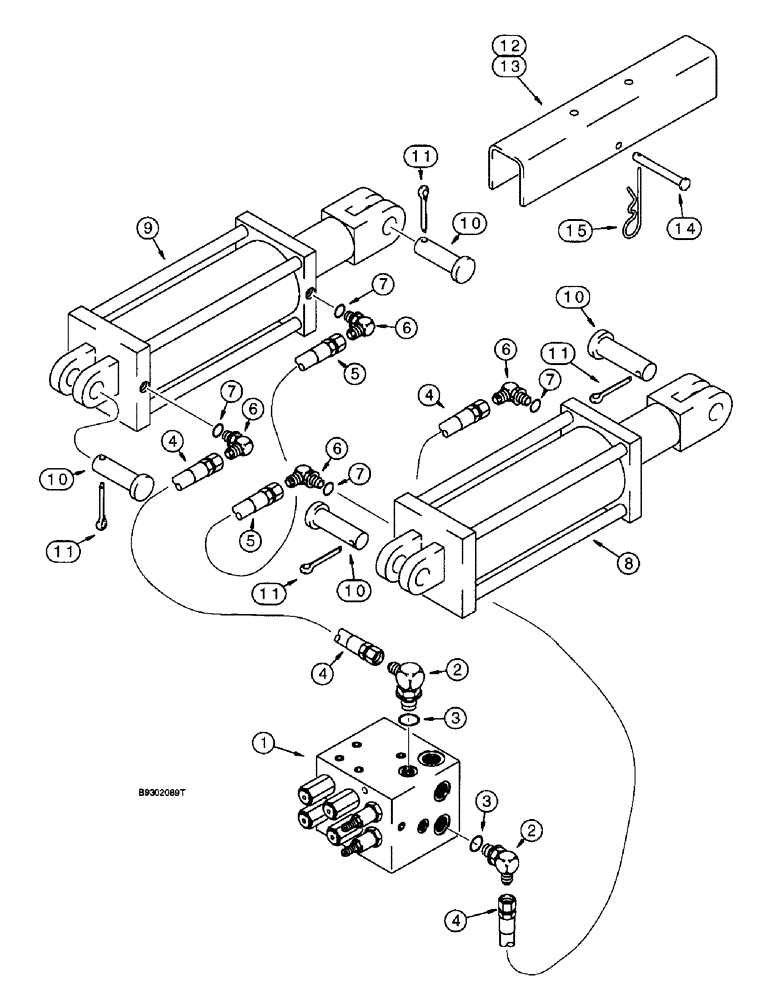

Запчасти Case IH 955 (8-052) - CARRYING WHEEL HYDRAULIC SYSTEM, 8 ROW WIDE AND 12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
138295A2
VALVE
ASSEMBLY - planter control, parts list page 8-161
1шт.
2
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss (Ports "L4" and "M" of control valve)
2шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
4
91240C1
HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1
Valve to Cylinder (12 Row Narrow Planter) 12.70 mm ID x 3050.00 mm, SAE 100R1
2шт.
4
90876C1
HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1
Valve to Cylinder (8 Row Wide Planter) 12.70 mm ID x 2540.00 mm, SAE 100R1
2шт.
5
1978105C1
HYDRAULIC HOSE
HOSE - 5715 mm (225 inch) long, cylinder to cylinder (12 row narrow planter)
1шт.
5
90685C1
HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1
Cylinder to Cylinder (8 Row Wide Planter) 12.70 mm ID x 4825.00 mm, SAE 100R1
1шт.
6
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss
4шт.
7
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
8
111062A1
CYLINDER
ASSEMBLY - 108 4-1/4) ID x 406 mm (16 inch) stroke, right-hand, slave carrying wheel, parts list page 8-103
1шт.
9
111065A1
CYLINDER
ASSEMBLY - 114 (4-1/2) ID x 406 mm (16 inch) stroke, left-hand, master carrying wheel, parts list page 8-105
1шт.
10
439-52056
HEADED PIN,1 1/4" x 3 1/2"
PIN - headed, 1-1/4 x 3-1/2 inch
4шт.
11
432-2040
COTTER PIN,5/16" x 2 1/2"
Pin, Split (Cotter), 5/16" x 2 1/2"
4шт.
12
118070A2
STOP
ASSEMBLY - cylinder, includes 1254230C2 decal, item 13
2шт.
13
1254230C2
WARNING DECAL
DECAL - Warning, to prevent personal injury, not shown (See page 9F-115, item 4)
1шт.
14
439-1652
HEADED PIN,9.53mm OD x 82.55mm L
PIN - headed, 3/8 x 3-1/4 inch, grade 2
2шт.
15
136-159
HAIR PIN COTTER,Int, 3/16 x .080"
PIN, SPLIT (COTTER), Int, 3/16 x .080"
2шт.
Выбрано товаров: 17
