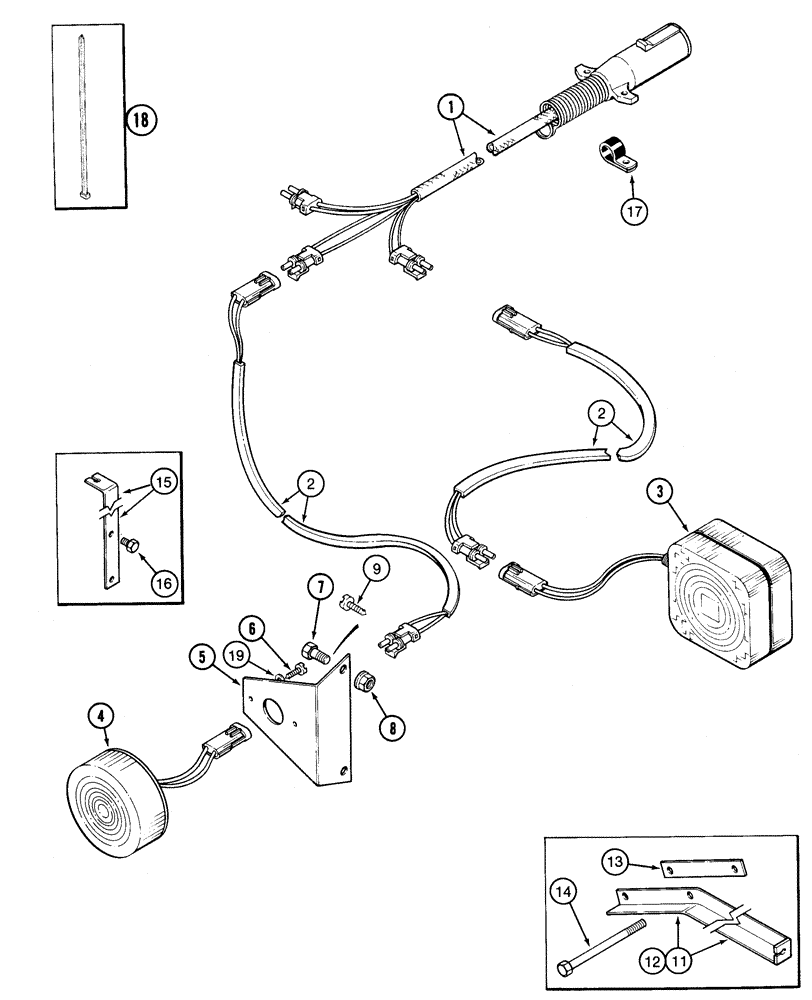

Запчасти Case IH 955 (4-02) - LIGHTING SYSTEM, 8 ROW NARROW, RIGID, 6 ROW WIDE, RIGID (04) - ELECTRICAL SYSTEMS

1

92092C2

HARNESS

- main (6 row wide and 8 row narrow)

1шт.

Unique to planters without endwise transport. Any part numbers that are used only on planters with endwise transport will be identified in their description with the phrase "with endwise transport".

1шт.

1

92093C2

HARNESS

- main (8 row narrow with endwise transport)

1шт.

2

92095C1

HARNESS

- lamp (Identification label marked "B") (6 row wide and 8 row narrow) (8 row narrow with endwise transport)

1шт.

2

92096C1

CABLE ASSY.

HARNESS - lamp (Identification label marked"C") (8 row narrow with endwise transport)

1шт.

2

92097C1

HARNESS

- lamp (Identification label marked "D") (6 row wide and 8 row narrrow)

1шт.

Unique to planters without endwise transport. Any part numbers that are used only on planters with endwise transport will be identified in their description with the phrase "with endwise transport".

1шт.

3

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal (Parts list page 4-13)

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail (Parts list page 4-13)

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex washer head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

for SMV bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

231-5146

FLANGE NUT,3/8"-16

for SMV bracket mounting Flg, USR, 3/8"-16

2шт.

9

138558A1

SELF-TAP SCREW,Hex Flg, 5/16" - 18 x 13/16", HDN

- hex head, self-tapping, 5/16 NC x 13/16 inch, for module mounting

2шт.

11

1333936C2

ANGLE

BRACKET - lamp support, left-hand (6 row wide and 8 row narrow)

1шт.

Unique to planters without endwise transport. Any part numbers that are used only on planters with endwise transport will be identified in their description with the phrase "with endwise transport".

1шт.

12

1333937C2

ANGLE

BRACKET - lamp support, right-hand (6 row wide and 8 row narrow)

1шт.

Unique to planters without endwise transport. Any part numbers that are used only on planters with endwise transport will be identified in their description with the phrase "with endwise transport".

1шт.

13

1333940C1

BAR

SUPPORT - backup (6 row wide and 8 row narrow)

2шт.

Unique to planters without endwise transport. Any part numbers that are used only on planters with endwise transport will be identified in their description with the phrase "with endwise transport".

1шт.

14

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

4шт.

Unique to planters without endwise transport. Any part numbers that are used only on planters with endwise transport will be identified in their description with the phrase "with endwise transport".

1шт.

15

1333941C2

BAR

BRACKET - lamp support (8 row narrow with endwise transport)

2шт.

16

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

4шт.

17

384557R1

CLIP

CLAMP - P-type, harness retaining

4шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

6шт.

19

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.
