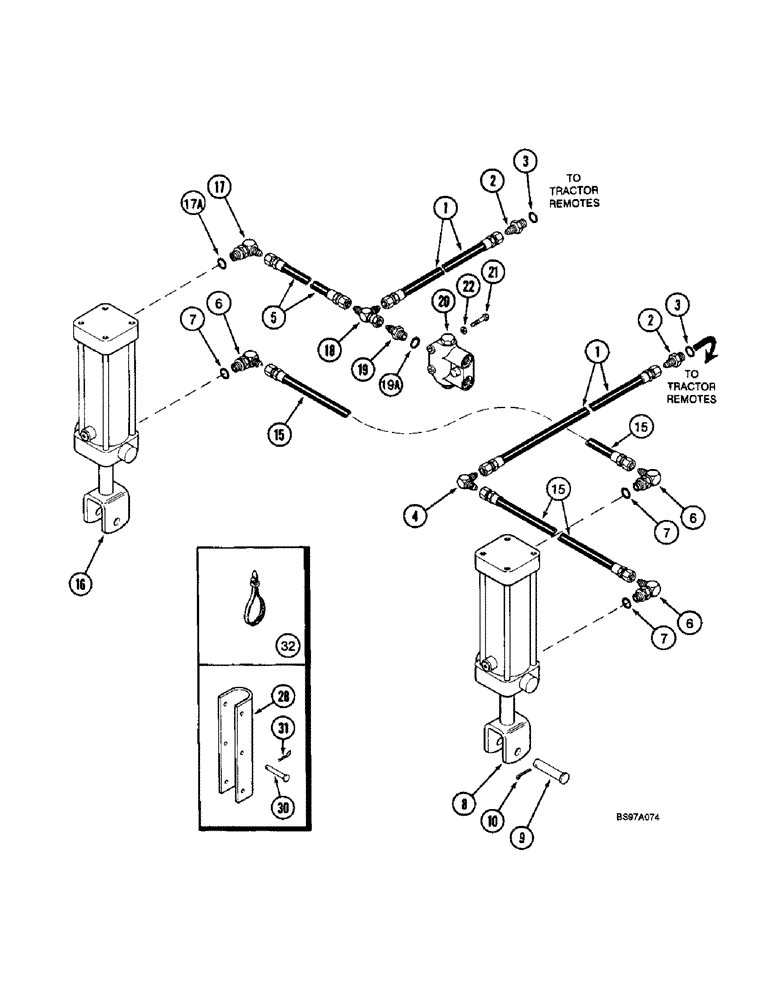

Запчасти Case IH 955 (8-048) - CARRYING WHEEL HYDRAULIC SYSTEM, 4 & 6 ROW NARROW - RIGID, 4ROW WIDE RIGID (08) - HYDRAULICS

1

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE - 4700 mm (185 inch) long, to tractor coupler

2шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

- 90 degree, 9/16-18 inch flare x flare

1шт.

5

1284301C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long (4 row wide)

2шт.

5

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long (4 and 6 row narrow)

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

3шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1286471C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, wheel, slave (See Page 8-99)

1шт.

9

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN - headed, 3/4 x 3-1/4 inch

2шт.

10

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

15

1284368C1

HYDRAULIC HOSE

HOSE - 2540 mm (100 inch) long (4 row wide)

1шт.

15

1284369C1

HYDRAULIC HOSE

HOSE - 3300 mm (130 inch) long (4 and 6 row narrow)

1шт.

16

1286472C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 83 (3-1/4) ID x 203 mm (8 inch) stroke, wheel, master (See Page 8-101)

1шт.

17

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

1шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

19

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (See Note)

1шт.

19

93206C1

FITTING

ADAPTER - straight, special

1шт.

Restrictor assembly 93206C1 is an alternative part for proper operation of marker valve by tractor with high hydraulic flow rate. Used on 6 row narrow only.

1шт.

19a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - sequencing (See Page 8-135)

1шт.

21

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

1261241C93

STOP

BRACKET ASSEMBLY - cylinder stop, includes decal

2шт.

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury

1шт.

30

439-1636

HEADED PIN,3/8" x 2 1/2", G2

PIN - headed, 3/8 x 2-1/4 inch, grade 2

2шт.

31

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
