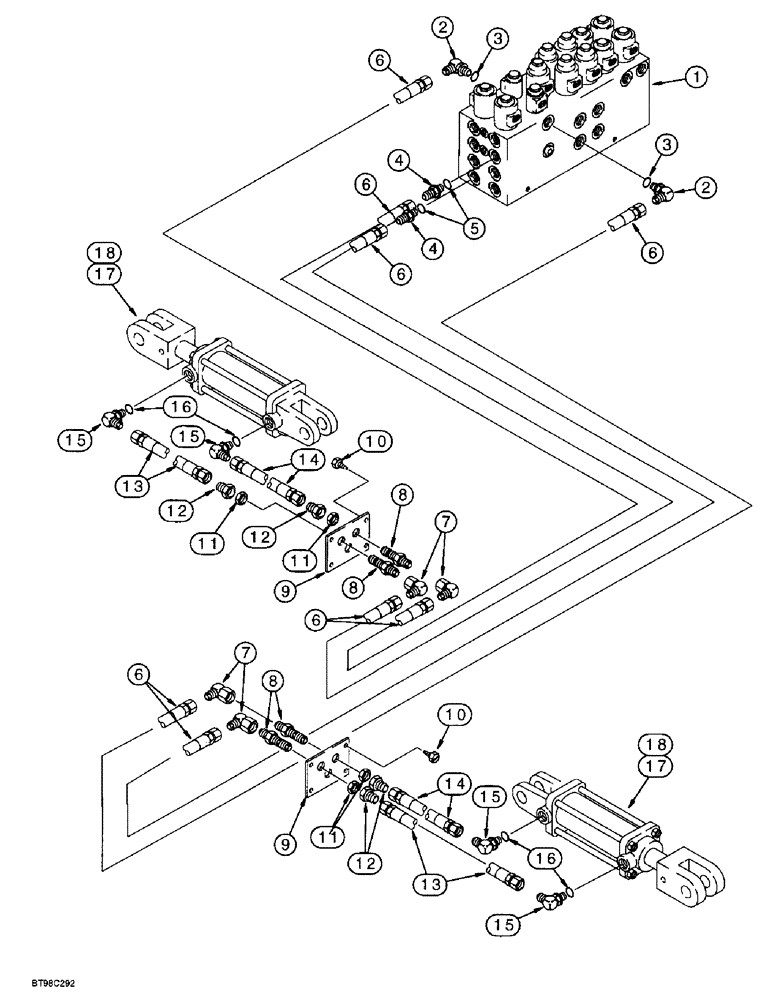

Запчасти Case IH 955 (8-047A) - ROW MARKER HYDRAULIC SYSTEM, W/ HYDRAFORCE CONTROL VALVE 24 ROW NARROW FRONT FOLD PLANTERS BUILT SEP (08) - HYDRAULICS

1

300702A1

VALVE

ASSEMBLY - control, 24 row, parts list page 8-159B, see page 8-35 for mounting

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

245609A1

HOSE

- 10160 mm (400 inch) long, at valve to marker cylinders

4шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

4шт.

8

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

9

133467A1

PLATE

- hose mounting

2шт.

10

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

12

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

ADAPTER - reducing, 3/4-16 female str thread x 9/16-18 inch flare

4шт.

13

1285380C2

HYDRAULIC HOSE

HOSE - 1270 mm (50 inch) long, to row marker cylinder, rod end

2шт.

14

1251944C1

HYDRAULIC HOSE

HOSE - 1041 mm (41 inch) long, to row marker cylinder, closed end

2шт.

15

92781C1

RESTRICTOR

ELBOW - 90 degree, special restrictor

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

307493A1

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 711 mm (28 inch) stroke, row marker lift, see page 9E-17B for cylinder mounting

2шт.

18

79978C2

SEAL KIT

KIT - seal, cylinder repair

1шт.
