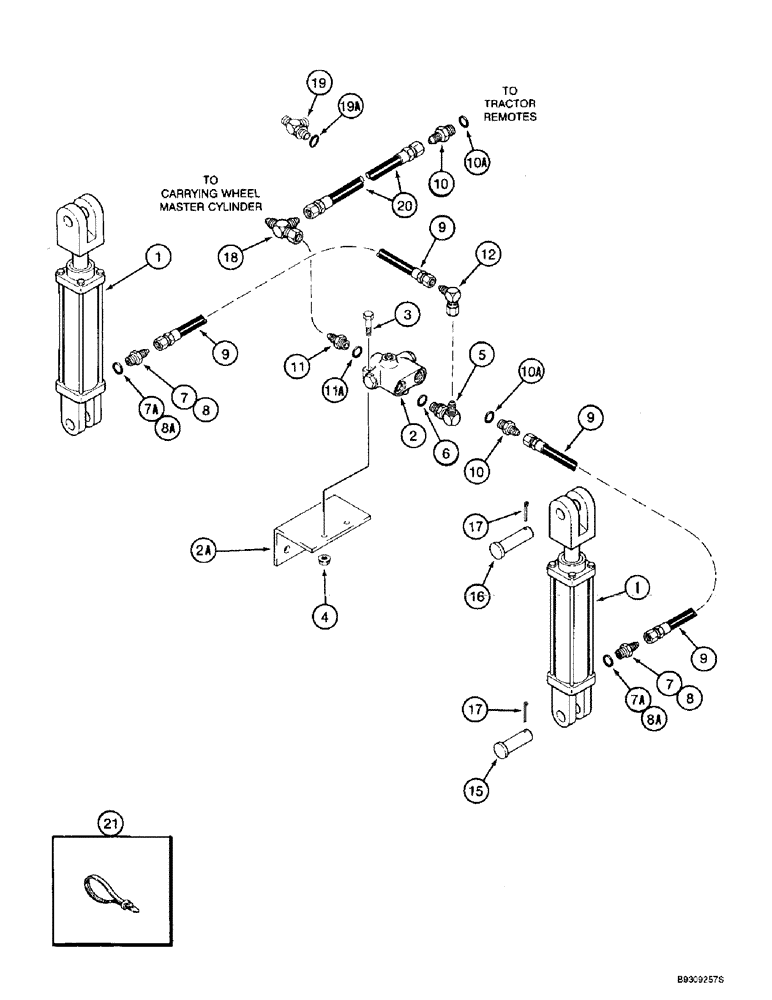

Запчасти Case IH 955 (8-038) - ROW MARKER HYDRAULIC SYSTEM, 4, 6 & 8 ROW NARROW - RIGID4 & 6 ROW WIDE RIGID (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke (4 and 6 row narrow and 4 row wide) Parts list page 8-89

2шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker lift (6 row wide and 8 row narrow) See pages 8-91 and 8-93 for correct cylinder

2шт.

2

93006C1

HYDRAULIC VALVE

VALVE ASSEMBLY - sequencing (Parts list page 8-135)

1шт.

2a

1547156C2

ANGLE

BRACKET - valve mounting

1шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

1263477C3

HYD CONNECTOR

ADAPTER - restrictor (4 and 6 row narrow and 4 row wide

2шт.

7a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss (6 row wide and 8 row narrow)

2шт.

9

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE - 2667 mm (105 inch) long (4 row narrow and 4 row wide)

2шт.

9

129768C1

HYDRAULIC HOSE

HOSE - 2921 mm (115 inch) long (6 row narrow)

2шт.

9

139655C2

HYDRAULIC HOSE

HOSE - 3937 mm (155 inch) long (6 row wide and 8 row narrow)

2шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (4 and 6 row narrow and 4 row wide)

2шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (6 row wide and 8 row narrow)

2шт.

10a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss (4 and 6 row narrow and 4 row wide) See note below

2шт.

11

93206C1

FITTING

ADAPTER - straight, special

1шт.

Restrictor adapter 93206C1 is an alternative part for proper operation of marker valve when used on tractor with high hydraulic flow rate. Used on 6 row narrow planter only.

1шт.

11a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

15

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch, grade 2

2шт.

16

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel (4 and 6 row narrow and 4 row wide)

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss (6 row wide and 8 row narrow)

1шт.

19a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

HOSE - 4700 mm (185 inch) long (4 and 6 row narrow and 4 row wide)

1шт.

20

91159C1

HYDRAULIC HOSE,12.70 mm ID x 4955.00 mm, SAE 100R1

HYDRALUIC HOSE, (6 Row Wide and 8 Row Narrow) 12.70 mm ID x 4955.00 mm, SAE 100R1

1шт.

21

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

8a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
