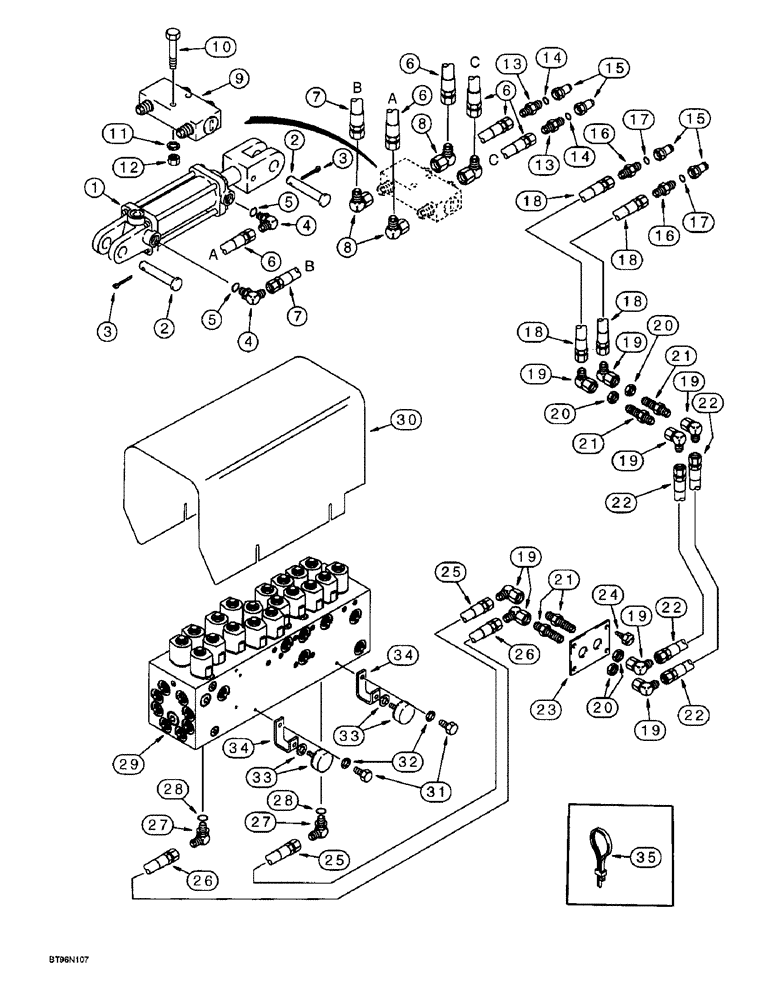

Запчасти Case IH 955 (8-036) - TRACTOR TO PLANTER HYDRAULIC SYSTEM, HYDRAULIC VALVE BLOCK MOUNTING WITH VICKERS CONTROL VALVE (08) - HYDRAULICS

1

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, tongue, parts list page 8-129

1шт.

2

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

185316A1

HOSE

- 1524 mm (60 inch) long, coupler to valve and valve to rod end of cylinder

3шт.

7

185314A1

HOSE

- 1041 mm (41 inch) long, valve to closed end of cylinder

1шт.

8

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

4шт.

9

142864C95

VALVE

ASSEMBLY - load check, alternating, parts list page 8-143

1шт.

10

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

4шт.

16

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

250960A2

HYDRAULIC HOSE,15.90 mm ID x 2540.00 mm, SAE 100R2 or SAE 100R16

Pressure and return 15.90 mm ID x 2540.00 mm, SAE 100R2 or SAE 100R16

2шт.

19

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

8шт.

20

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

21

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

22

250959A2

HYDRAULIC HOSE,15.90 mm ID x 4445.00 mm, SAE 100R2 or SAE 100R16

Intermediate, Pressure and return 15.90 mm ID x 4445.00 mm, SAE 100R2 or SAE 100R16

2шт.

23

250720A1

LARGE PLATE

PLATE - hose mounting

1шт.

24

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

4шт.

25

250961A2

HYDRAULIC HOSE,15.90 mm ID x 3556.00 mm, SAE 100R2 or SAE 100R16

Pressure, at valve 15.90 mm ID x 3556.00 mm, SAE 100R2 or SAE 100R16

1шт.

26

250962A2

HYDRAULIC HOSE,15.90 mm ID x 3810.00 mm, SAE 100R2 or SAE 100R16

Return, at valve 15.90 mm ID x 3810.00 mm, SAE 100R2 or SAE 100R16

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

240736A1

VALVE

ASSEMBLY - control, 12/23 solid row crop, parts list page 8-157

1шт.

30

116068A2

COVER ASSY

COVER - control valve

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

32

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

2шт.

34

1261523C91

BRACKET

- mounting, cover retaining knob

4шт.

35

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
