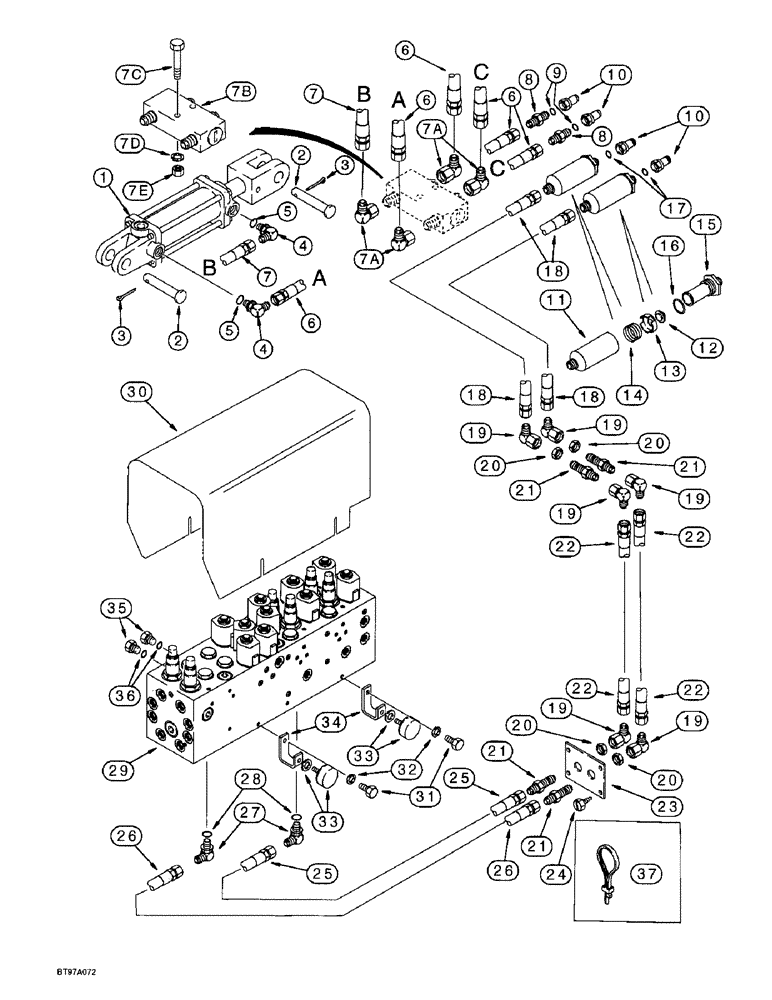

Запчасти Case IH 955 (8-034) - TRACTOR TO PLANTER HYDRAULIC SYSTEM, HYDRAULIC VALVE BLOCK MOUNTING, WITH VICKERS CONTROL VALVE (08) - HYDRAULICS

1

1272148C91

CYLINDER

ASSEMBLY - 102 (4) ID x 203 mm (8 inch) stroke, tongue, parts list page 8-131

1шт.

2

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

185316A1

HOSE

- 1524 mm (60 inch) long, coupler to valve and valve to rod end of cylinder

3шт.

7

185314A1

HOSE

- 1041 mm (41 inch) long, valve to closed end of cylinder

1шт.

7a

218-5382

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch swivel

4шт.

7b

142864C95

VALVE

ASSEMBLY - load check, alternating, parts list page 8-143

1шт.

7c

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

7d

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7e

425-106

NUT,3/8"-16, Cl 5

2шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

4шт.

93305C2

STRAINER ASSY.

FILTER ASSEMBLY - hydraulic

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - filter (Order 93305C2)

1шт.

93279C1

KIT

- poppet

1шт.

12

NSS

NOT SOLD SEPARAT

POPPET - filter (Order 93279C1)

1шт.

13

NSS

NOT SOLD SEPARAT

GUIDE - filter (Order 93279C1)

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - filter (Order 93279C1)

1шт.

93278C1

KIT

- strainer cover

1шт.

ref 93278c1 ORING USED IN KIT IS 238-6124

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - strainer (Order 93278C1)

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - strainer (Order 93278C1)

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

18

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Pressure and Return 12.70 mm ID x 2540.00 mm, SAE 100R1

2шт.

19

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

6шт.

20

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

21

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

4шт.

22

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

12.70 mm ID X 6730.00 mm, Intermediate, Pressure and Return

2шт.

23

133467A1

PLATE

- hose mounting

1шт.

24

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

2шт.

25

134213A1

HYDRAULIC HOSE

HOSE - 5588 mm (220 inch) long, return, at valve

1шт.

26

134214A1

HOSE

- 5994 mm (236 inch) long, pressure, at valve

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

124461A2

VALVE

ASSEMBLY - control, 24 row narrow, parts list page 8-159

1шт.

30

116068A2

COVER ASSY

COVER - control valve

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

32

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

33

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

2шт.

34

1261523C91

BRACKET

- mounting, cover retaining knob

4шт.

35

9625178

PLUG,9/16" - 18 ORB

2шт.

37

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
