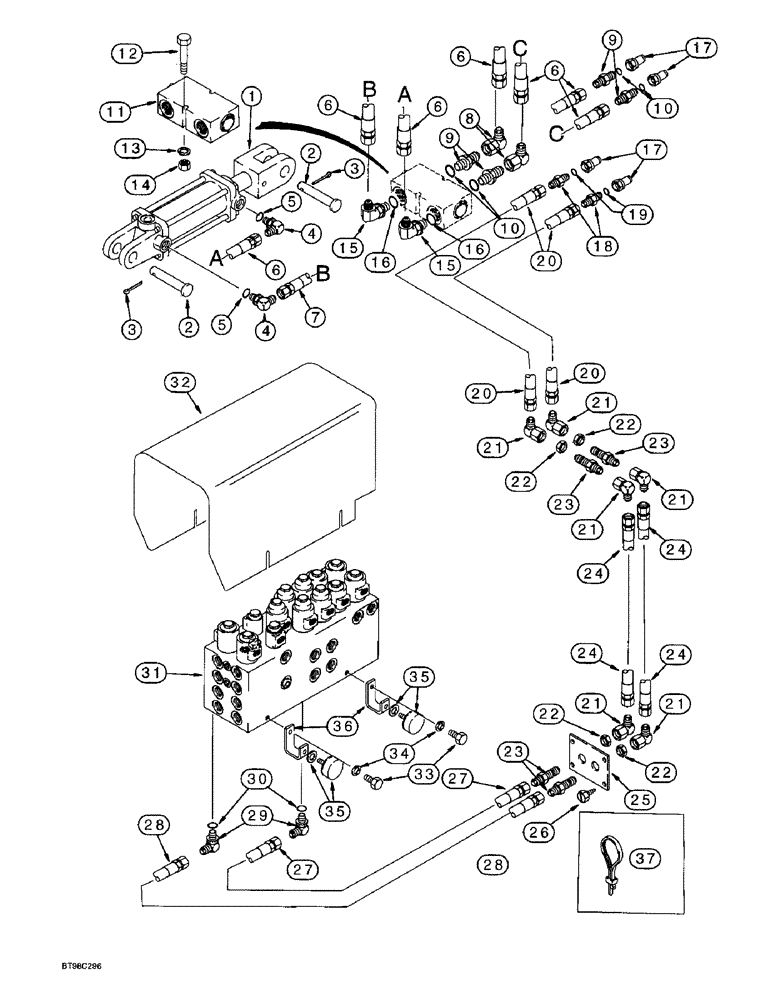

Запчасти Case IH 955 (8-033A) - TRACTOR TO PLANTER HYDRAULIC SYSTEM, HYDRAULIC VALVE BLOCK MOUNTING W/HYDRAFORCE CONTROL VALVE (08) - HYDRAULICS

1

1272147C92

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, tongue, parts list page 8-129, 12 row wide and 16 row narrow

1шт.

1

1272146C91

CYLINDER

ASSEMBLY - 76 (3) ID x 203 mm (8 inch) stroke, 12 RN

1шт.

2

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

3

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

4

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long, coupler to valve and valve to rod end of cylinder

3шт.

7

91163C1

HYDRAULIC HOSE,9.65mm ID x 1193.8mm L, SAE 100R1

Valve to Closed End of Cylinder 9.65 mm ID x 1193.80 mm, SAE 100R1

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

11

298624A1

VALVE

ASSEMBLY - load check, double acting, parts list page 8-143B

1шт.

12

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

15

297975A1

ELBOW

- 90 degree, special, with orifice

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

1285718C2

QUICK MALE COUPLING

COUPLER - self-sealing male, 3/4-16 inch thread

4шт.

18

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 flare x 9/16-18 inch O-ring boss

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

250960A1

HOSE

- 2540 mm (100 inch) long, pressure and return

2шт.

21

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

6шт.

22

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

4шт.

23

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

24

250959A2

HYDRAULIC HOSE,15.90 mm ID x 4445.00 mm, SAE 100R2 or SAE 100R16

Intermediate, Pressure and return, 12 row narrow 15.90 mm ID x 4445.00 mm, SAE 100R2 or SAE 100R16

2шт.

24

296599A1

HYDRAULIC HOSE,15.90 mm ID x 5200.00 mm, SAE 100R16 Class 8

HOSE - 5207 mm (205 inch) long, intermediate, pressure and return, 12 row wide and 16 row narrow

2шт.

25

250720A1

LARGE PLATE

PLATE - hose mounting

1шт.

26

276-14812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex head, 5/16 NC x 3/4 inch

2шт.

27

250961A2

HYDRAULIC HOSE,15.90 mm ID x 3556.00 mm, SAE 100R2 or SAE 100R16

Return, at valve, 12 row narrow 15.90 mm ID x 3556.00 mm, SAE 100R2 or SAE 100R16

1шт.

27

296598A1

HYDRAULIC HOSE,15.90 mm ID x 4065.00 mm, SAE 100R16 Class 8

HOSE - 4064 mm (160 inch) long, return, at valve, 12 row wide and 16 row narrow

1шт.

28

250962A2

HYDRAULIC HOSE,15.90 mm ID x 3810.00 mm, SAE 100R2 or SAE 100R16

Pressure, at valve, 12 and 16 row narrow and 12 row wide 15.90 mm ID x 3810.00 mm, SAE 100R2 or SAE 100R16

1шт.

29

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

240737A2

VALVE

ASSEMBLY - control, 12 and 16 row narrow and 12 row wide, parts list page 8-155B

1шт.

32

298671A2

COVER ASSY

COVER - control valve

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

34

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

2шт.

36

1261523C91

BRACKET

- mounting, cover retaining knob

4шт.

37

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.
