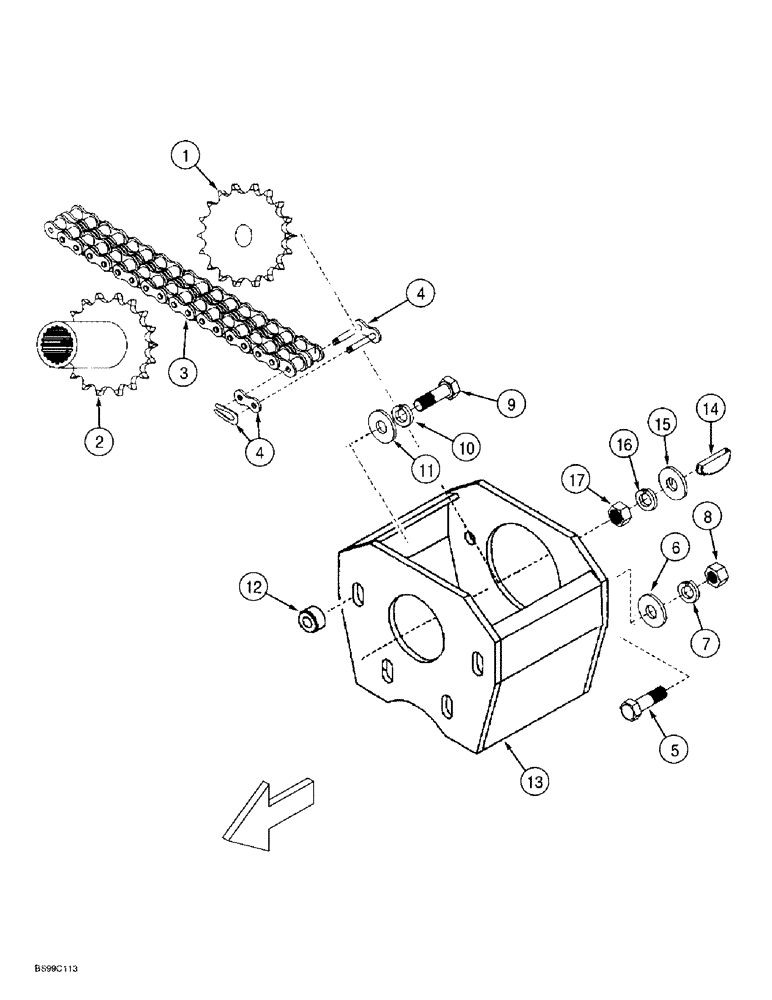

Запчасти Case IH 955 (8-028) - BLOWER PUMP MOUNTING PARTS, 24 ROW NARROW - FRONT FOLD, 12/23 SOLID ROW CROP - FRONT FOLD (08) - HYDRAULICS

1

304196A1

SPROCKET ASSY.

COUPLER, Serial Range: --pump

1шт.

2

303217A1

SPROCKET ASSY.

COUPLER, Serial Range: --PTO

1шт.

3

303218A1

CHAIN - roller, use 17 links of 28363R1 bulk chain and (1) 241-1326 master link

1шт.

4

241-1326

LINK,12.7mm Pitch

- connecting, single pitch, No. 60-2, 3/4 inch pitch, roller chain

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

12

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

- 1/2 x 3/8 inch

4шт.

13

304195A1

HOUSING ASSY.

HOUSING - coupler

1шт.

14

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

15

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

28363R1

CHAIN (AG)

CHAIN - bulk, No. 60, 10 ft (3048 mm) roll

1шт.
