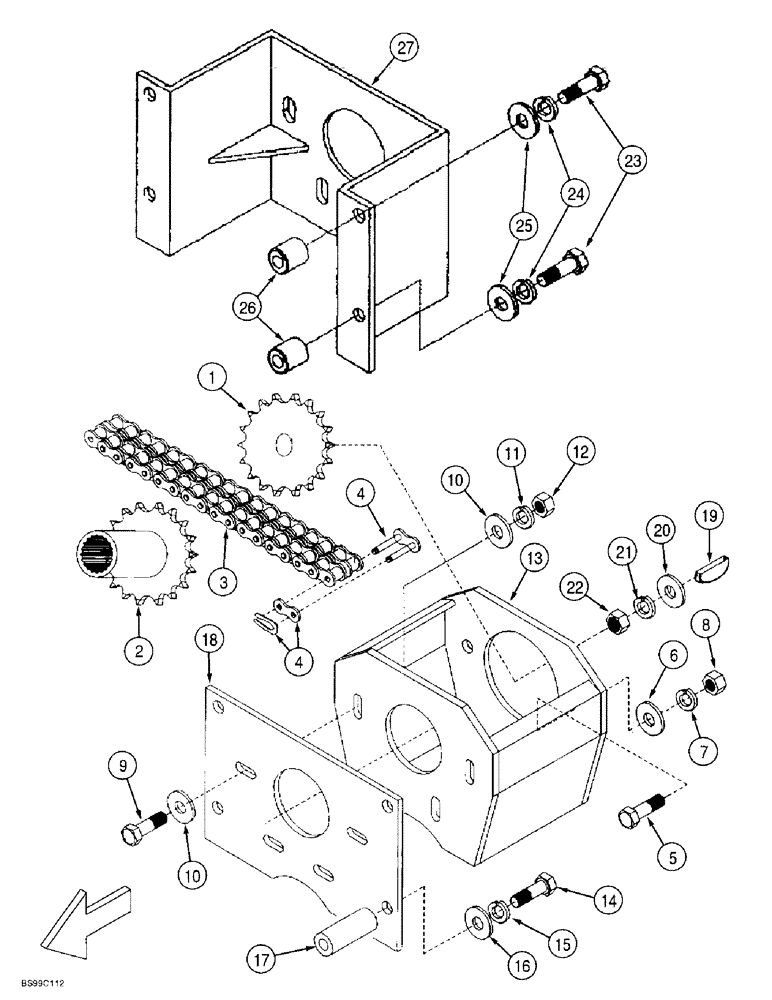

Запчасти Case IH 955 (8-026) - BLOWER PUMP MOUNTING PARTS, 24 ROW NARROW, FRONT FOLD, 12/23 SOLID ROW CROP, FRONT FOLD (08) - HYDRAULICS

1

304196A1

SPROCKET ASSY.

COUPLER, Serial Range: --pump

1шт.

2

303217A1

SPROCKET ASSY.

COUPLER, Serial Range: --PTO

1шт.

3

303218A1

CHAIN - roller, use 17 links of 28363R1 bulk chain and (1) 241-1326 master link

1шт.

4

241-1326

LINK,12.7mm Pitch

- connecting, single pitch, No. 60-2, 3/4 inch pitch, roller chain

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

10

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

13

304195A1

HOUSING ASSY.

HOUSING - coupler

1шт.

14

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

Magnum tractors only Hex, M10 x 90, 8.8

4шт.

15

892-11010

LOCK WASHER,M10

Magnum tractors only M10

4шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Magnum tractors only M10 x 18 x 1.6

4шт.

17

303214A1

SPACER

- adapter plate, Magnum tractors only

4шт.

18

303213A1

PLATE

- tractor adapter, Magnum tractors only

1шт.

19

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

20

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

22

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

23

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, Fargo 4 wheel drive only

4шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fargo 4 wheel drive only 1/2"

4шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Fargo 4WD only 1/2", SAE

4шт.

26

D48528

SPACER

- adapter plate, Fargo 4 wheel drive only

4шт.

27

130541A2

BRACKET

PLATE - tractor adapter, Fargo 4 wheel drive only

1шт.

28363R1

CHAIN (AG)

CHAIN - bulk, No. 60, 10 ft (3048 mm) roll

1шт.
