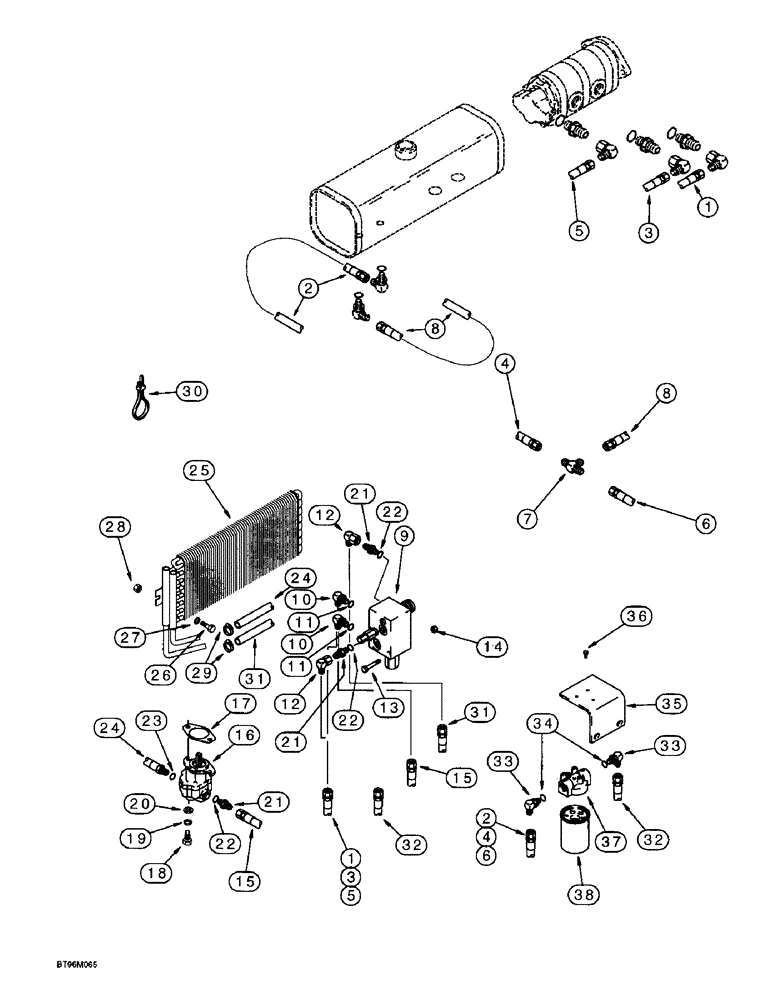

Запчасти Case IH 955 (8-024) - BLOWER PUMP HYDRAULIC SYSTEM, BLOWER MODULE AND LINES, 12/23 SOLID ROW CROP, FRONT FOLD (08) - HYDRAULICS

1

1337264C1

HOSE ASSY.

HOSE - 7239 mm (285 inch) long, pressure, pump to flow control valve, left-hand module

1шт.

2

1337264C1

HOSE ASSY.

HOSE - 7239 mm (285 inch) long, return, filter to reservoir, right-hand module

1шт.

3

245609A1

HOSE

- 10160 mm (400 inch) long, pressure, pump to flow control valve, center module

1шт.

4

90877C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, return, filter to tee, left-hand module

1шт.

5

245606A1

HYDRAULIC HOSE

HOSE - 7874 mm (310 inch) long, pressure, pump to flow control valve, right-hand module

1шт.

6

134212A1

HOSE

- 3810 mm (150 inch) long, return, filter to tee, center module

1шт.

7

218-610

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Br

- 1-1/16-20 flare branch x 3/4-16 inch flare x flare

1шт.

8

135368A1

HYDRAULIC HOSE

HOSE - 5080 mm (200 inch) long, return, Serial Range: tee-reservoir

1шт.

9

115885A1

VALVE

ASSEMBLY - flow control (See page 8-149)

3шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

6шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

6шт.

13

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

6шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

15

90882C1

HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1

Flow Control Valve to Motor 12.70 mm ID x 1195.00 mm, SAE 100R1

3шт.

16

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-151)

3шт.

16

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH TRAILING PLANTER, N.A. Only

3шт.

16

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

17

1985956C1

GASKET

- blower motor

3шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

19

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

9шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

3шт.

24

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

3шт.

25

1265677C1

OIL COOLER

COOLER - oil

3шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

27

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

28

425-106

NUT,3/8"-16, Cl 5

6шт.

29

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

6шт.

30

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, nylon

12шт.

31

127167A2

HOSE

- 1905 mm (75 inch) long, cooler to flow control valve

3шт.

32

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Flow Control Valve to Filter 12.70 mm ID x 585.00 mm, SAE 100R1

3шт.

33

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

6шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

127715A4

SUPPORT

BRACKET - mounting, filter

3шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

37

113464C91

FILTER

ASSEMBLY - hydraulic oil

3шт.

38

113465C1

FILTER

- hydraulic oil

1шт.
