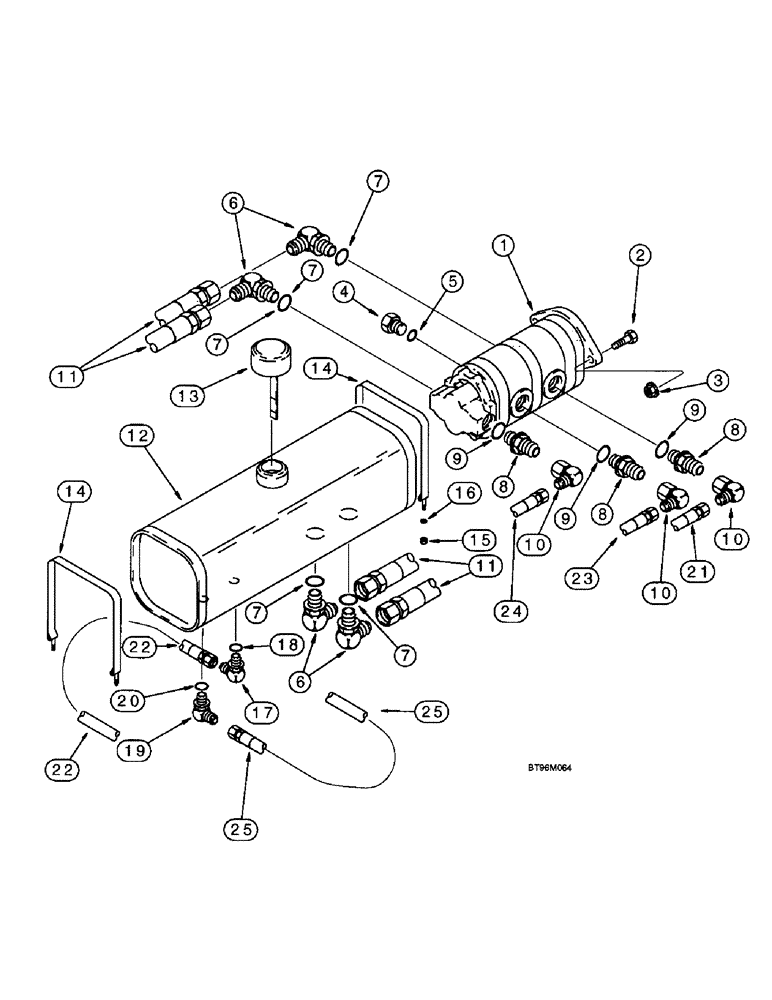

Запчасти Case IH 955 (8-020) - BLOWER PUMP HYDRAULIC SYSTEM, PUMP, RESERVOIR AND LINES, 12/23 SOLID ROW CROP, FRONT FOLD (08) - HYDRAULICS

1

119853A1

PUMP

ASSEMBLY - hydraulic

1шт.

D149152

PACKAGE, REPAIR

KIT - pump repair, minor (Not shown)

3шт.

1

A45046

WEAR PLATE

PLATE - wear (Not shown)

2шт.

1

D54169

SEALING RING

SEAL - ring, pump retaining (Not shown)

2шт.

1

D54168

SEAL

SEAL - backup (Not shown)

2шт.

1

D54167

SEAL

SEAL - pre-load (Not shown)

2шт.

1

A23903

OIL SEAL

- oil, gear housing (Not shown)

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring boss

4шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

3шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

10

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 3/4-16 flare x 1-1/16-12 inch swivel

3шт.

11

118673A1

HOSE,31.75mm ID x 1675mm L, SAE 100R4

- 1676 mm (66 inch) long, suction

2шт.

12

115872A1

RESERVOIR, HYDRAULIC

RESERVOIR ASSEMBLY - hydraulic oil, 4-1/2 gallon

1шт.

13

129575A1

CAP

- reservoir, includes dipstick

1шт.

14

116093A1

STRAP

- reservoir mounting

2шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.

16

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

1337264C1

HOSE ASSY.

HOSE - 7239 mm (285 inch) long, pressure, pump to flow control valve, left-hand module

1шт.

See Figure 8-24 for continuation of these hoses at blower modules.

1шт.

22

1337264C1

HOSE ASSY.

HOSE - 7239 mm (285 inch) long, return, filter to reservoir, right-hand module

1шт.

See Figure 8-24 for continuation of these hoses at blower modules.

1шт.

23

245609A1

HOSE

- 10160 mm (400 inch) long, pressure, pump to flow control valve, center module

1шт.

See Figure 8-24 for continuation of these hoses at blower modules.

1шт.

24

245606A1

HYDRAULIC HOSE

HOSE - 7874 mm (310 inch) long, pressure, pump to flow control valve, right-hand module

1шт.

See Figure 8-24 for continuation of these hoses at blower modules.

1шт.

25

135368A1

HYDRAULIC HOSE

HOSE - 5080 mm (200 inch) long, return, Serial Range: tee-reservoir

1шт.

See Figure 8-24 for continuation of these hoses at blower modules.

1шт.
