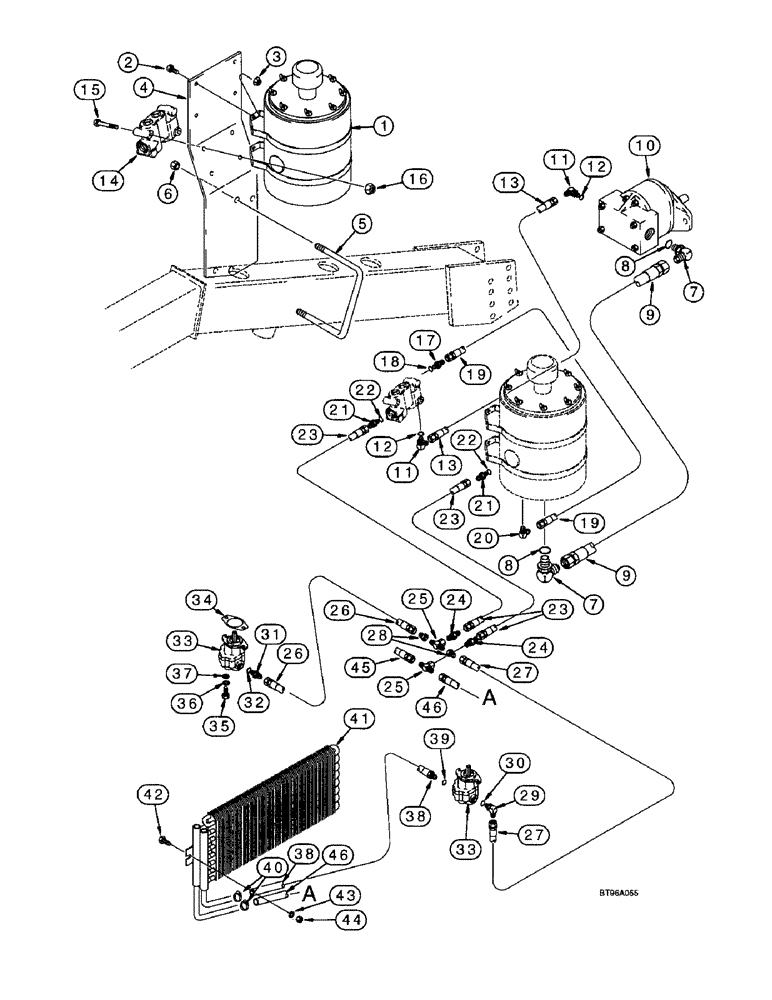

Запчасти Case IH 955 (8-016) - BLOWER PUMP HYDRAULIC SYSTEM, 12 ROW NARROW, PARALLEL FRONT FOLD (08) - HYDRAULICS

1

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (Parts list page 8-153)

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

184088A1

PLATE

BRACKET - reservoir mounting

1шт.

5

221842A1

U-BOLT,5/8" - 11 x 7 1/2"

- 5/8 inch NC, 8 x 6 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

2шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

9

58159C2

HOSE,31.75mm ID x 1371.6mm L

- Suction 1.25" ID x 54.00"

1шт.

10

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, see pages 8-145 and 8-147 for correct pump

1шт.

See page 8-11, items 8 through 31, for pump mounting to tractor and coupler to power takeoff parts.

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

843063C1

HYDRAULIC HOSE,0.75" ID x 52.00"

Pressure, to Flow Control Valve 0.75" ID x 52.00"

1шт.

14

127743C91

VALVE

ASSEMBLY - flow control, parts list page 8-139

1шт.

15

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

91201C1

HYDRAULIC HOSE,12.70 mm ID x 585.00 mm, SAE 100R1

Return Bypass 12.70 mm ID x 585.00 mm, SAE 100R1

1шт.

20

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

2шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

222246A1

HOSE

- 4900 mm (192-15/16 inch) long, valve to blower motors and cooler, Serial Range: return-reservoir

2шт.

24

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

2шт.

25

218-858

TEE,37 Degree, 7/8"-14 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 swivel branch x 7/8-14 inch flare x flare

1шт.

26

134212A1

HOSE

- 3810 mm (150 inch) long, pressure, to left-hand blower motor

1шт.

27

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Pressure to Right-Hand Blower Motor 12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

28

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

2шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See page 8-151)

2шт.

33

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH TRAILING PLANTER, N.A. Only

2шт.

33

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

34

1985956C1

GASKET

- blower motor

2шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

36

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

37

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

38

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Return, Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

40

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

41

1265677C1

OIL COOLER

COOLER - oil

2шт.

42

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

43

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

44

425-106

NUT,3/8"-16, Cl 5

4шт.

45

223323A1

HOSE

- 4270 mm (168-1/8 inch) long, return, left-hand, Serial Range: cooler-reservoir

1шт.

46

223322A1

HOSE

- 3000 mm (118-1/8 inch) long, return, right-hand, Serial Range: cooler-reservoir

1шт.
