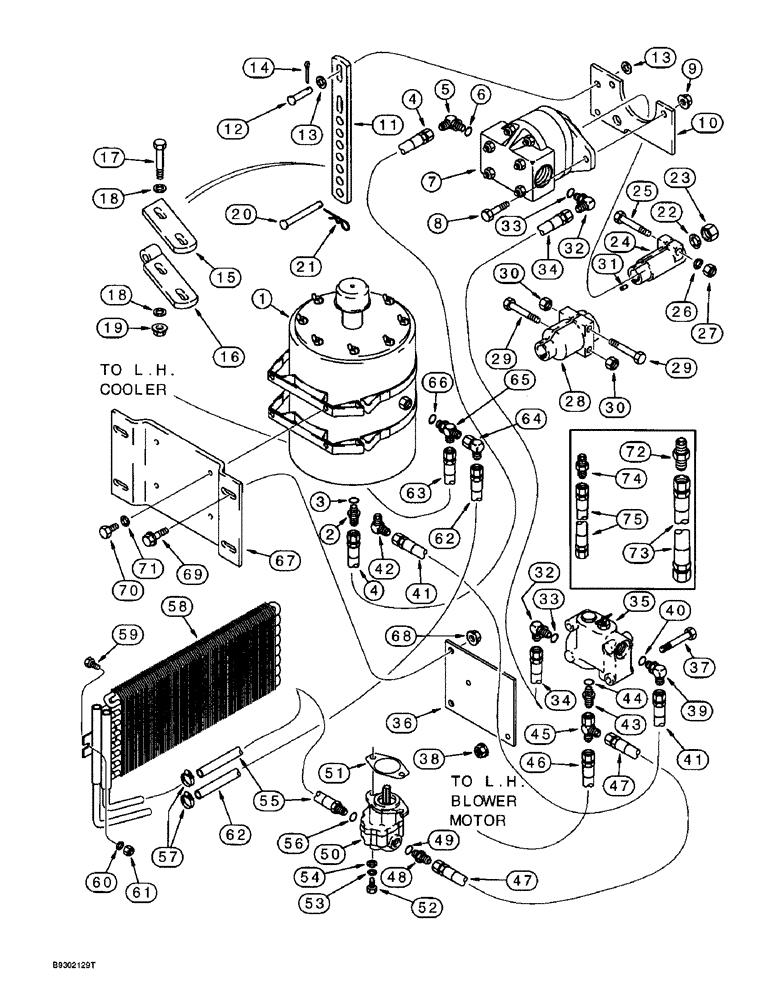

Запчасти Case IH 955 (8-010) - BLOWER PUMP HYDRAULIC SYSTEM, 12 ROW NARROW - VERTICAL FOLD (08) - HYDRAULICS

1

156395C91

RESERVOIR

ASSEMBLY - hydraulic oil, 3 gallon (Parts list page 8-153)

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

4

109876A2

HYDRAULIC HOSE,31.75mm ID x 5080mm L, SAE 100R4

- 4570 mm (180 inch) long, Suction, at hydraulic pump

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

7

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, see pages 8-145 and 8-147 for correct pump

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

10

56773C2

PLATE

- pump mounting

1шт.

11

56774C1

BRACKET

- adjusting

1шт.

12

39-1720

HEADED PIN,7/16" x 1 1/4"

PIN - headed, 7/16 x 1-1/4 inch, grade 2

2шт.

13

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

56776C1

BAR

STRAP - retaining, pump

1шт.

16

1254128C1

STRAP

- retaining, pump

1шт.

17

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

20

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

1шт.

21

1978738C1

HAIR PIN COTTER

3/16"

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

23

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

COUPLER ASSEMBLY - pump, 1-3/8 inch spline

1шт.

24

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

25

414-840

BOLT,Hex, 1/2" - 20 x 2-1/2", Gr 5

- hex, 1/2 NF x 2-1/2 inch

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

27

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

1958268C1

COUPLING

COUPLER ASSEMBLY - pump, 1-3/4 inch spline

1шт.

28

NSS

NOT SOLD SEPARAT

COUPLER - power takeoff

1шт.

29

414-856

BOLT,Hex, 1/2" - 20 x 3-1/2", Gr 5

- hex, 1/2 NF x 3-1/2 inch

2шт.

30

131-58

LOCK NUT,1/2"-20, G5

NUT - light hex, self-locking, 1/2 inch NF

2шт.

31

177192C1

KEY

- shaft, Serial Range: pump-coupler

1шт.

32

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss

2шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

34

135368A1

HYDRAULIC HOSE

HOSE - 5080 mm (200 inch) long, pressure, flow control valve

1шт.

35

127743C91

VALVE

ASSEMBLY - flow control (Parts list page 8-139)

1шт.

36

121979A1

PLATE

- mounting, flow control valve

1шт.

37

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

41

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long, return bypass

1шт.

42

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, 3/4-16 flare x 3/8 inch PT

1шт.

43

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

45

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

46

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

Pressure, Left-Hand Blower Motor 12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

47

1304245C2

HYDRAULIC HOSE

HOSE - 940 mm (37 inch) long, pressure, right-hand blower motor

1шт.

48

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

49

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

50

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (Parts list page 8-151)

2шт.

50

1272056C92R

REMAN-HYD MOTOR

955 - CASE IH TRAILING PLANTER, N.A. Only

2шт.

50

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

51

1985956C1

GASKET

- blower motor

2шт.

52

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

53

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

54

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

55

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

Return, Blower Motor To Cooler 12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

2шт.

56

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

57

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

58

1265677C1

OIL COOLER

COOLER - oil

2шт.

59

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

60

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

61

425-106

NUT,3/8"-16, Cl 5

4шт.

62

1250788C1

HYDRAULIC HOSE

HOSE - 1524 mm (60 inch) long, return, tee to right-hand cooler

1шт.

63

1254561C1

HYDRAULIC HOSE

HOSE - 2286 mm (90 inch) long, return, tee to left-hand cooler

1шт.

64

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

65

159484C91

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14

- special

1шт.

66

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

67

108990A2

BRACKET

PLATE - reservoir mounting

1шт.

68

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

4шт.

69

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

70

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

71

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

72

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - straight, 1-5/16-12 inch flare

1шт.

73

58159C2

HOSE,31.75mm ID x 1371.6mm L

- Suction, Extension, Used when planter is equipped with fertilizer cart 1.25" ID x 54.00"

1шт.

74

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

75

843063C1

HYDRAULIC HOSE,0.75" ID x 52.00"

Pressure, Extension, Used When Planter is equipped with Fertilizer Cart 0.75" ID x 52.00"

1шт.
