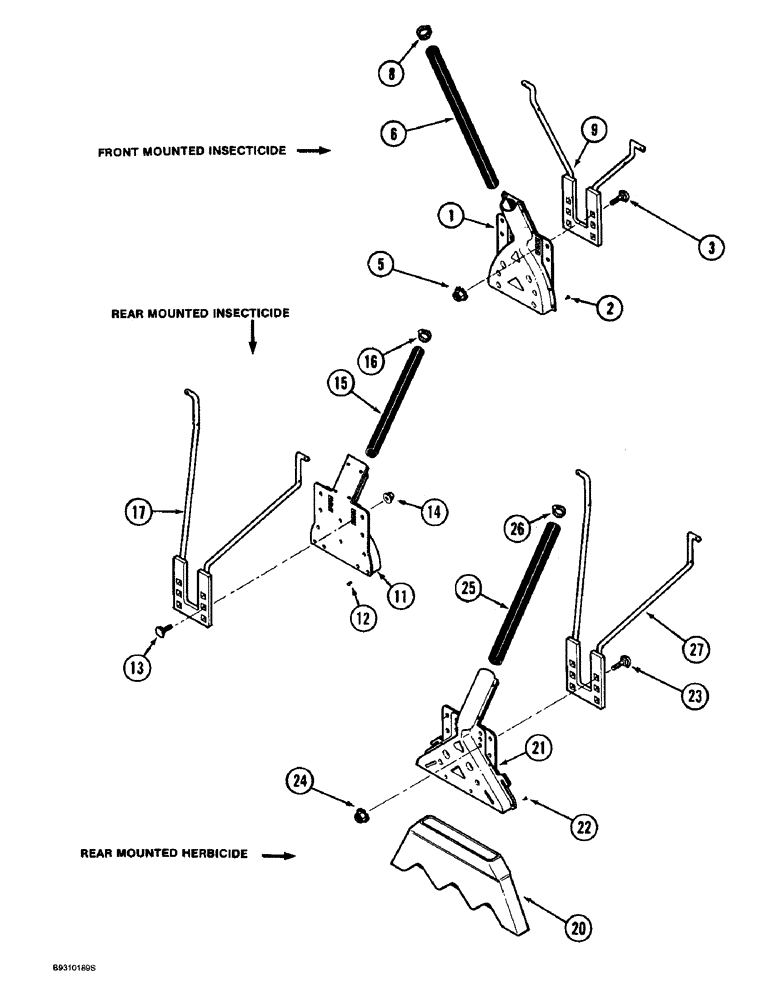

Запчасти Case IH 955 (9F-108) - FRONT MOUNTED INSECTICIDE SPREADER, ALL RIGID, VERTICAL FOLD, FRONT FOLD & PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1986065C2

SLINGER

SPREADER - insecticide

1шт.

2

1254229C1

RIVET

- oval head

6шт.

3

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

543746R2

HOSE,19.05 mm ID x 279.00 mm

19.05 mm ID x 279.00mm, Cut from 1254166C2 bulk hose, see below

1шт.

6

149307C1

HOSE

- 559 mm (22 inch) long, cut from 1254166C2 bulk hose, see below)

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

1шт.

9

149256C3

SUPPORT

- spreader

1шт.

11

1986065C2

SLINGER

SPREADER - insecticide, rear mounted insecticide spreader

1шт.

12

1254229C1

RIVET

- oval head, rear mounted insecticide spreader

6шт.

13

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2, rear mounted insecticide spreader

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Rear mounted insecticide spreader

2шт.

15

141224C1

HOSE,19.05 mm ID x 355.00 mm

- 356 mm (14 inch) long, cut from 1254166C2 bulk hose, see below), rear mounted insecticide spreader

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Rear mounted insecticide spreader #10, 0.56/1.06 Type F Worm

1шт.

17

137101C2

SUPPORT

- spreader, rear mounted insecticide spreader

1шт.

20

100087C1

DEFLECTOR

- herbicide, spreader

1шт.

21

1986066C2

DRILL

SPREADER - herbicide

1шт.

22

1254229C1

RIVET

- oval head, herbicide spreader

6шт.

23

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2, herbicide spreader

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Herbicide spreader

2шт.

25

141224C1

HOSE,19.05 mm ID x 355.00 mm

- 356 mm (14 inch) long, cut from 1254166C2 bulk hose, see below), herbicide spreader

1шт.

26

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Herbicide spreader #10, 0.56/1.06 Type F Worm

1шт.

27

137101C2

SUPPORT

- spreader, herbicide

1шт.

1254166C2

TUBE

HOSE - bulk, 19 (3/4) ID x 30480 mm (1200 inch) long, herbicide spreader

1шт.
