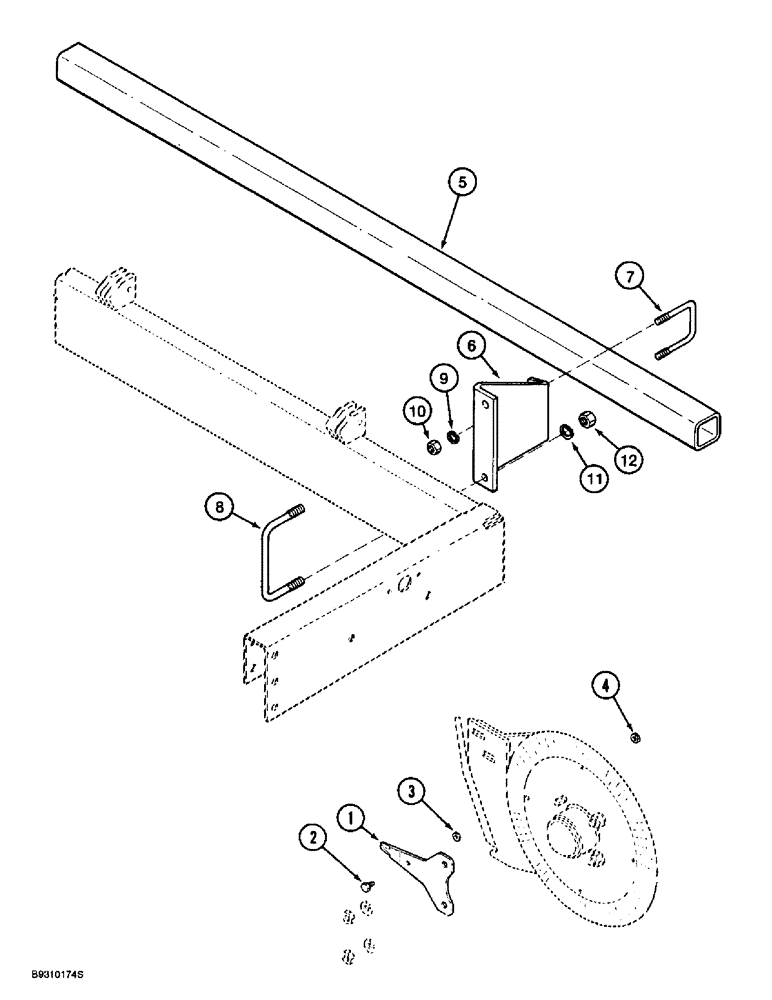

Запчасти Case IH 955 (9F-100) - KNIFE SCRAPER (09) - CHASSIS/ATTACHMENTS

1

1344522C1

KIT

BLADE - knife scraper, used with liquid and dry fertilizer applicators, all rigid, vertical fold and front fold planters

1шт.

Quantities are per row.

1шт.

2

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8, Used with liquid and dry fertilizer applicators, all rigid, vertical fold and front fold planters

1шт.

Quantities are per row.

1шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Used with liquid and dry fertilizer applicators, All rigid, Vertical fold and front fold planters 5/16"

1шт.

Quantities are per row.

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Used with liquid and dry fertilizer applicators, all rigid, vertical fold and front fold planters 5/16"

1шт.

Quantities are per row.

1шт.

5

1344526C1

TUBE,1702 mm Length

BAR - extension, 67 inch long, fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters

2шт.

6

1344525C1

BRACKET

- extension, 8 inch, fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters

4-6шт.

7

1344524C1

U-BOLT

- 1/2 inch NC, 2-1/2 x 3-1/2 inch, fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters

4-6шт.

8

1344523C1

U-BOLT,5/8" - 11 x 6" W x 3 1/2" L

- 5/8 inch NC, 6 x 3-1/2 inch, fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters

4-6шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters 1/2"

8-12шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters 1/2"-13, G5

8-12шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters 5/8"

8-12шт.

12

425-1010

NUT,5/8"-11, G5

Fertilizer applicator mounting bar, used with liquid fertilizer applicator all rigid planters 5/8"-11, G5

8-12шт.
