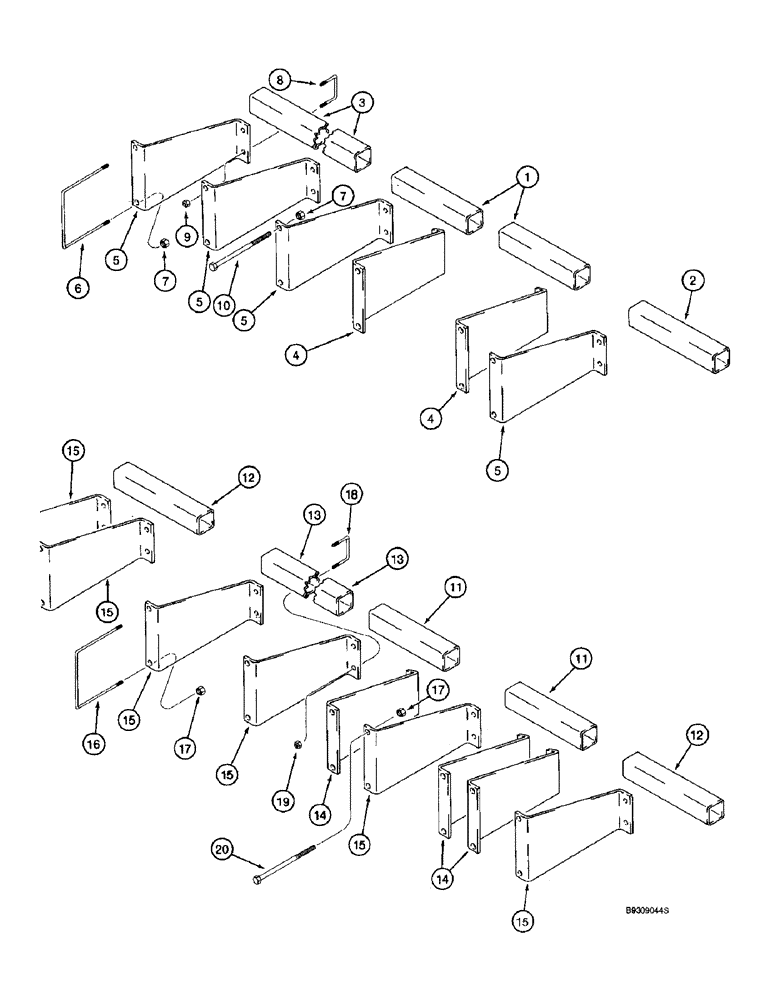

Запчасти Case IH 955 (9F-094) - FERTILIZER APPLICATOR MOUNTING BAR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
113672A2
TUBE,285 mm Length
BAR - applicator mounting, 285 mm (11-1/4 inch) long, 12 row narrow, front fold
4шт.
2
113673A1
TUBE,454 mm Length
BAR - applicator mounting, 340 mm (13-3/8 inch) long, 12 row narrow, front fold
2шт.
3
1284407C1
TUBE,2100 mm Length
BAR - applicator mounting, 2108 mm (83 inch) long, 12 row narrow, front fold
2шт.
4
113666A1
BAR
BRACKET - fertilizer bar, left-hand, 12 row narrow, front fold
6шт.
5
113667A1
BAR
BRACKET - fertilizer bar, right-hand, 12 row narrow, front fold
6шт.
6
1250813C1
U-BOLT
- 5/8 inch NC, 7 x 7 inch, 12 row narrow, front fold
12шт.
7
425-1010
NUT,5/8"-11, G5
12 row narrow, front fold 5/8"-11, G5
24шт.
8
1344524C1
U-BOLT
- 1/2 inch NC, 2-1/2 x 3-1/2 inch, 12 row narrow, front fold
16шт.
9
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex, 12 row narrow, front fold 1/2"-13, G5
32шт.
10
413-10144
BOLT,Hex, 5/8" - 11 x 9", Gr 5
- hex, 5/8 NC x 9 inch, 12 row narrow, front fold
4шт.
11
113672A2
TUBE,285 mm Length
BAR - applicator mounting, 285 mm (11-1/4 inch) long, 16 row narrow, front fold
4шт.
12
113673A1
TUBE,454 mm Length
BAR - applicator mounting, 340 mm (13-3/8 inch) long, 16 row narrow, front fold
4шт.
13
113674A1
TUBE,2750 mm Length
BAR - applicator mounting, 2750 mm (108-1/4 inch) long, 16 row narrow, front fold
2шт.
14
113666A1
BAR
BRACKET - fertilizer bar, left-hand, 16 row narrow, front fold
9шт.
15
113667A1
BAR
BRACKET - fertilizer bar, right-hand, 16 row narrow, front fold
9шт.
16
1250813C1
U-BOLT
- 5/8 inch NC, 7 x 7 inch, 16 row narrow, front fold
18шт.
17
425-1010
NUT,5/8"-11, G5
16 row narrow, front fold 5/8"-11, G5
36шт.
18
1344524C1
U-BOLT
- 1/2 inch NC, 2-1/2 x 3-1/2 inch, 16 row narrow, front fold
22шт.
19
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex, 16 row narrow, front fold 1/2"-13, G5
44шт.
20
413-10144
BOLT,Hex, 5/8" - 11 x 9", Gr 5
- hex, 5/8 NC x 9 inch, 16 row narrow, front fold
4шт.
Выбрано товаров: 20
