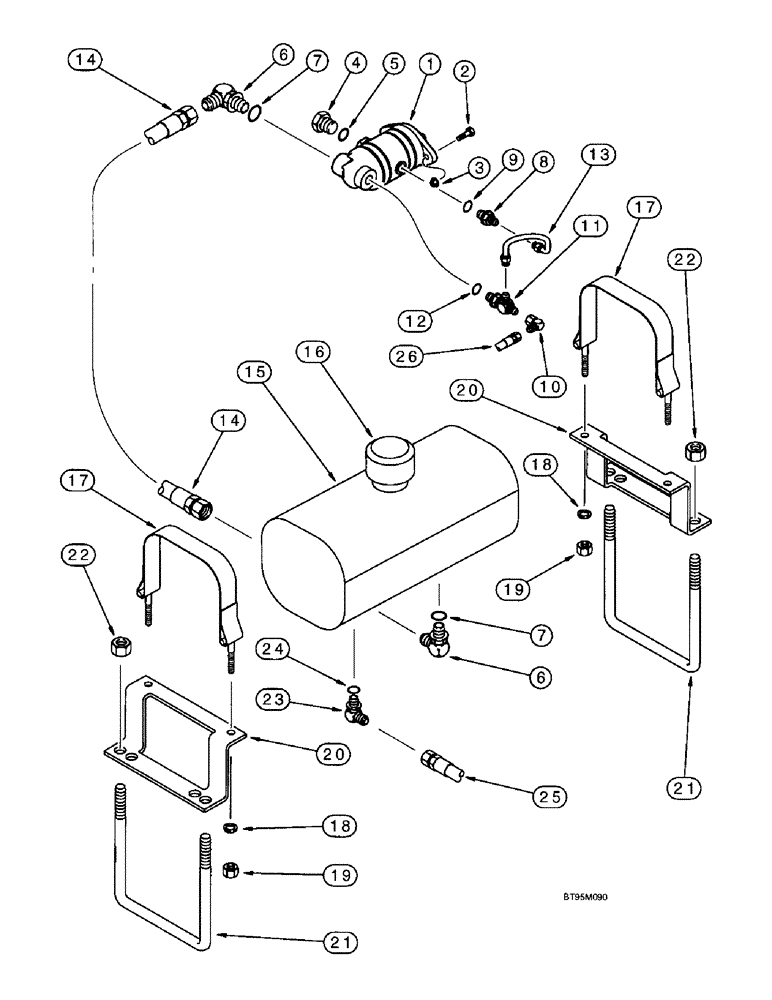

Запчасти Case IH 955 (8-004) - BLOWER PUMP HYD. SYS., PUMP, RESERVOIR & LINES, 540 RPM PTO ALL RIGID PLANTERS 8 ROW WIDE VERT. FOLD (08) - HYDRAULICS

1

115886A1

PUMP

ASSEMBLY - hydraulic, two section, 540 RPM

1шт.

D149152

PACKAGE, REPAIR

KIT - pump repair, minor (Not shown)

2шт.

1a

A45046

WEAR PLATE

PLATE - wear (Not shown)

2шт.

1b

D54169

SEALING RING

SEAL - ring, pump retaining (Not shown)

2шт.

1c

D54168

SEAL

SEAL - backup (Not shown)

2шт.

1d

D54167

SEAL

SEAL - pre-load (Not shown)

2шт.

1e

A23903

OIL SEAL

- oil, gear housing (Not shown)

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

3a

179633A1

COUPLING

COUPLER - pump, used with 115886A1 pump, not shown

1шт.

4

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- hex, 1-5/8-12 inch O-ring boss

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring boss

2шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

8

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

10

218-5376

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 3/4-16 flare x 1-1/16-12 inch swivel

1шт.

11

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- 1-1/16-12 fl branch x flare x 1-5/16-12 inch adj O-ring

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

13

221078A1

HYD TUBE

TUBE - connecting, pressure ports

1шт.

14

118673A1

HOSE,31.75mm ID x 1675mm L, SAE 100R4

- 1676 mm (66 inch) long, suction

1шт.

15

115869A1

RESERVOIR, HYDRAULIC

RESERVOIR ASSEMBLY - hydraulic oil, 3 gallon

1шт.

16

129575A1

CAP

- reservoir, includes dipstick

1шт.

17

116093A1

STRAP

- reservoir mounting

2шт.

18

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

183284A1

BRACKET

- mounting, tank

2шт.

21

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT - 5/8 inch NC, 5 x 8 inch, all rigid planters

2шт.

21

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- 5/8 inch NC, 5 x 7 inch, 8 row wide - vertical fold

2шт.

22

425-1010

NUT,5/8"-11, G5

4шт.

23

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 3/4-16 flare x 1-1/16-12 inch adj O-ring boss

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

90685C1

HYDRAULIC HOSE,12.70 mm ID x 4825.00 mm, SAE 100R1

Filter to Reservoir, All Rigid Planters 12.70 mm ID x 4825.00 mm, SAE 100R1

1шт.

See Figure 8-009 for continuation of these hoses at blower module.

1шт.

25

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

Filter to Reservoir, 8 Row Wide, Vertical Fold 12.70 mm ID x 6730.00 mm, SAE 100R1

1шт.

See Figure 8-009 for continuation of these hoses at blower module.

1шт.

26

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

Pump to Flow Control Valve (All Rigid Planters) 12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

See Figure 8-009 for continuation of these hoses at blower module.

1шт.

26

91162C1

HYDRAULIC HOSE,12.70 mm ID x 6730.00 mm, SAE 100R1

Pump to Flow Control Valve, 8 Row Wide, Vertical Fold 12.70 mm ID x 6730.00 mm, SAE 100R1

1шт.

See Figure 8-009 for continuation of these hoses at blower module.

1шт.
