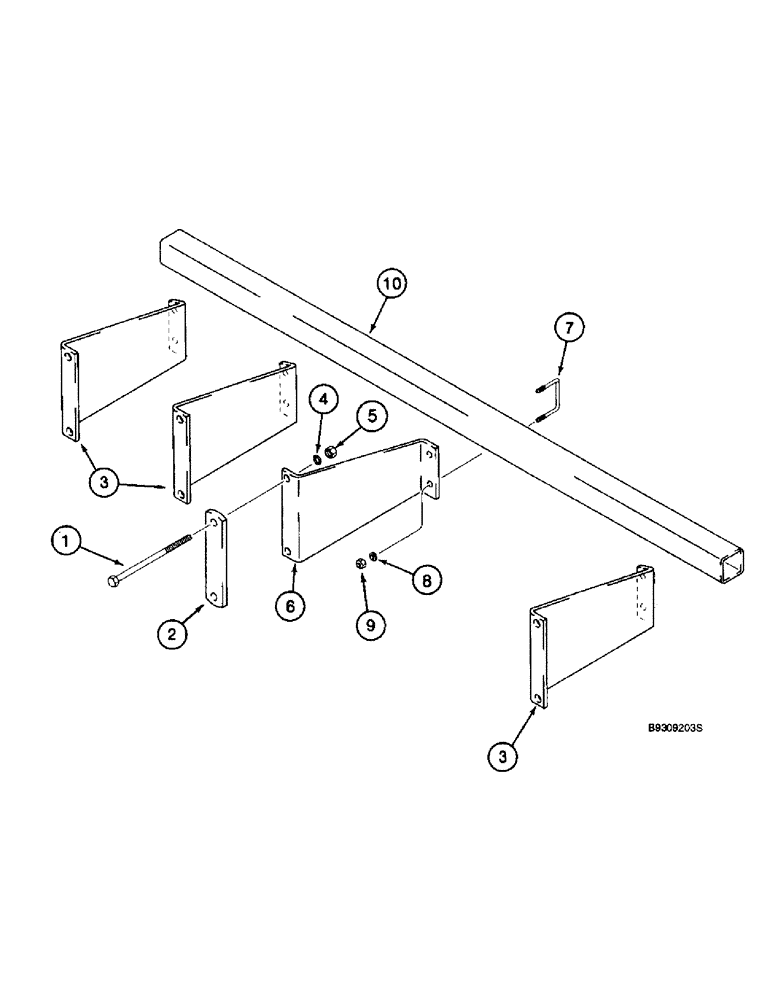

Запчасти Case IH 955 (9F-092) - FERTILIZER APPLICATOR MOUNTING BAR, 8 ROW WIDE AND 12 ROW (09) - CHASSIS/ATTACHMENTS

1

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

16шт.

2

111465A1

STRAP

- front bar bracket

8шт.

3

113666A1

BAR

BRACKET - fertilizer bar, left-hand

4шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

425-1010

NUT,5/8"-11, G5

16шт.

6

113667A1

BAR

BRACKET - fertilizer bar, right-hand

4шт.

7

1344524C1

U-BOLT

- 1/2 inch NC, 2-1/2 x 3-1/2 inch

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

10

1344526C1

TUBE,1702 mm Length

BAR - extension, 67 inch long

2шт.
