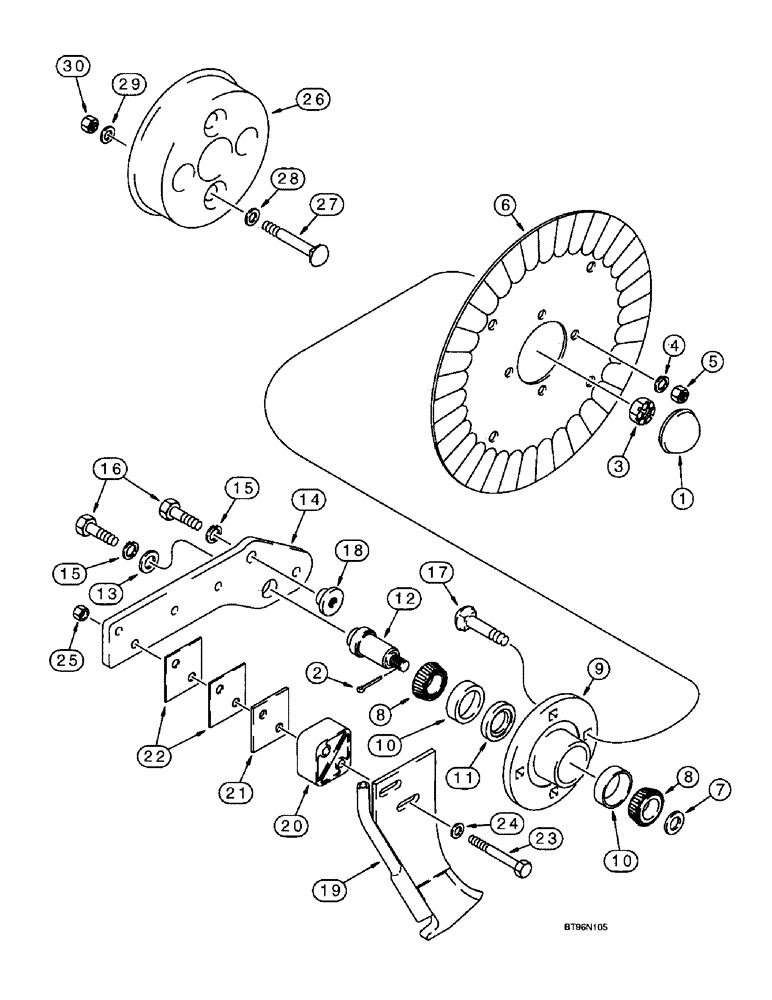

Запчасти Case IH 955 (9F-090) - NO-TILL COULTER, WITH HORIZONTAL CUSHION SPRING, COULTER AND KISSES (09) - CHASSIS/ATTACHMENTS

1

1344515C1

CAP

- hub

1шт.

2

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

3

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1344516C1

PLOW DISC

COULTER - ripple, 17 inch

1шт.

7

1344527C1

WASHER

- flat, 11/16 x 1-3/4 x 1/4 inch

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

9

1344512C1

HUB

- coulter

1шт.

10

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

11

652769R91

OIL SEAL

- oil

1шт.

12

252157A1

SPINDLE

- coulter

1шт.

13

108133A1

WASHER,16.67mm ID x 38.1mm OD x 4.76mm Thk

- flat, 1-1/2 x 21/32 x 3/16 inch

1шт.

14

252163A1

ARM

- fertilizer knife

1шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

17

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

18

252165A1

PIVOT

- upper arm

1шт.

19

1344517C2

KNIFE

- liquid fertilizer

1шт.

20

252318A1

BLOCK

SPACER - block

1шт.

21

1344518C1

SHIM

- 1/8 inch thick, knife

1шт.

22

1344519C1

SHIM

- 1/16 inch thick, knife

3шт.

23

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

24

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

2шт.

25

231-4248

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

26

1986465C1

WHEEL,228.6mm OD x 63.5mm W

- gauge, 9 inch, if used

1шт.

26

1986466C1

WHEEL

- gauge, 11 inch, if used

1шт.

27

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

2шт.

28

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

2шт.

29

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

30

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.
