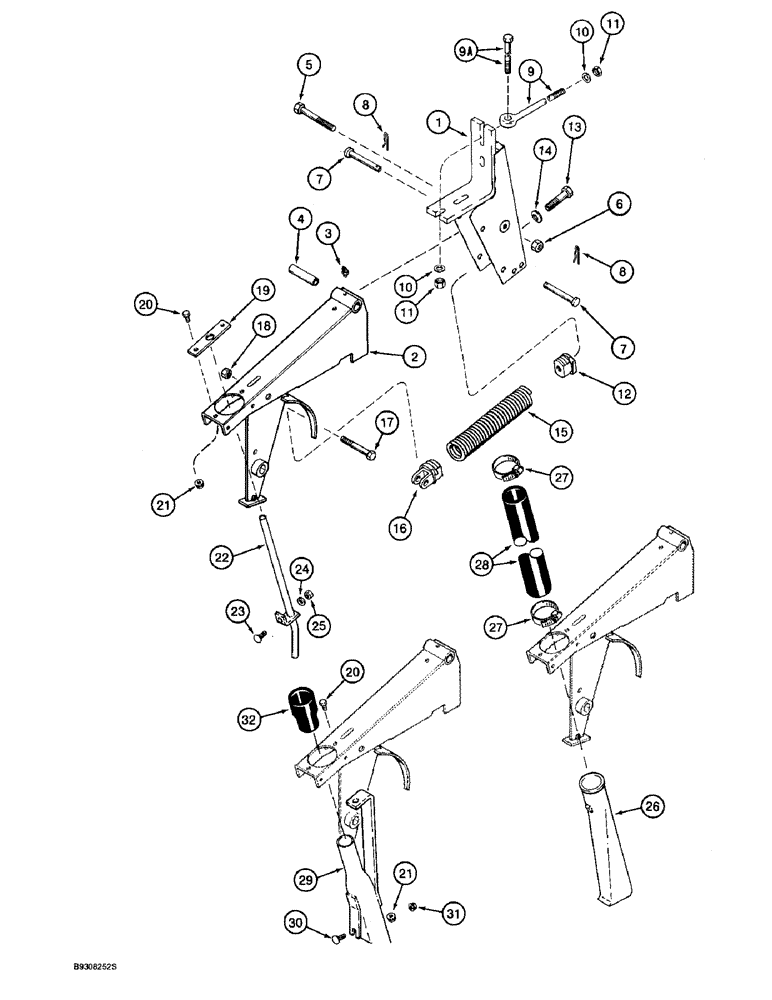

Запчасти Case IH 955 (9F-080) - DOUBLE DISC OPENERS, SUPPORTS AND TUBES, LIQUID AND DRY FERTILIZER (09) - CHASSIS/ATTACHMENTS

1

128884A1

HANGER

SUPPORT - hanger, disc opener

1шт.

2

1250742C2

FRAME

- disc

1шт.

3

219-404

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45°, 3/16 drive type x 13/16"

1шт.

4

1250726C1

TUBE,12.95 mm ID, 19.05 mm OD, 76 mm Length

SPACER - bracket

1шт.

5

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

7

439-5860

HEADED PIN,1/2" x 3 3/4"

PIN - headed, 1/2 x 3-3/4 inch

2шт.

8

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

2шт.

9

136795A2

EYEBOLT

- 1/2 NC x 3-15/16 inch

1шт.

9

136796A1

EYEBOLT

- 1/2 NC x 6-1/2 inch

1шт.

9

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

1шт.

9

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch

1шт.

9

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

1шт.

10

495-81196

WASHER,29.36mm ID x 69.85mm OD x 1.7mm Thk

- flat, 1-5/32 x 2-3/4 x 3/64 inch

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

12

591547R1

PLUG

- spring retaining

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

14

1250736C1

WASHER

- pivot

1шт.

15

591546R2

SPRING

- shank return, plug

1шт.

16

1250700C1

PLUG

- spring retaining

1шт.

17

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

1шт.

18

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

19

147424C1

STRIP

PLATE - tube locator (Liquid fertilizer)

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

22

147421C2

TUBE,283 mm Length

- fertilizer (Liquid fertilizer)

1шт.

23

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

26

140995C2

TUBE,212 mm Length

- drop (Dry fertilizer)

1шт.

27

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable (Dry fertilizer) #32, 1.56/2.50 Type F Worm

2шт.

28

141007C1

HOSE,35-54 mm ID x 100.011 mm

- 100 mm (4 inch) long (Dry fertilizer)

1шт.

29

134444A2

TUBE,147 mm Length

- fertilizer, front fold center frame (Dry fertilizer)

1шт.

30

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

32

108121A1

ADAPTER

- fertilizer hose, front fold center frame (Dry fertilizer)

1шт.
