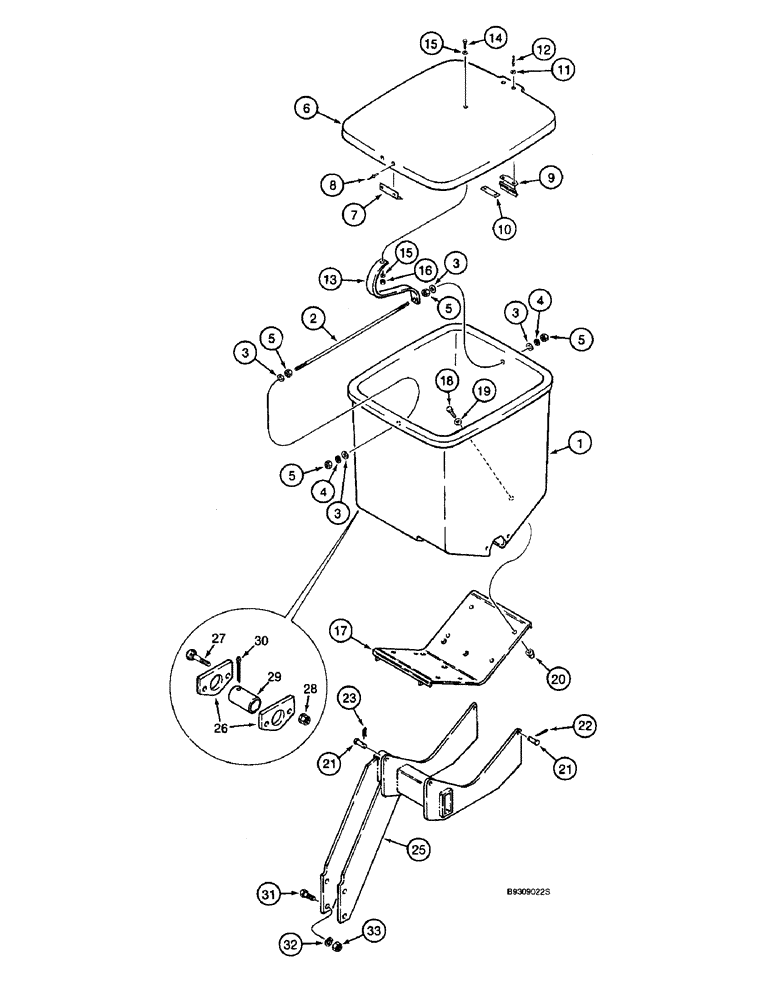

Запчасти Case IH 955 (9F-070) - DRY FERTILIZER HOPPER AND MOUNTING, OUTER WING, 12 ROW (09) - CHASSIS/ATTACHMENTS

1

124447A1

HOPPER

- one outlet, dry fertilizer, outer wing

1шт.

2

137171C2

STEM

ROD - hopper spacer

1шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

124718A1

COVER

ASSEMBLY - hopper

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - hopper

1шт.

7

137169C1

SUPPORT

- cover

1шт.

8

151-510

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 7/16 inch

2шт.

9

NSS

NOT SOLD SEPARAT

LATCH - hopper

1шт.

Part of latch kit P/N 1264399C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

1шт.

Part of latch kit P/N 1264399C91

1шт.

11

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

2шт.

Part of latch kit P/N 1264399C91

1шт.

12

151-512

RIVET,Pop, 4.75mm OD x 9.53mm L

- break mandrel, 3/16 x 9/16 inch, latch retaining

2шт.

Part of latch kit P/N 1264399C91

1шт.

13

137170C1

STRAP

- hopper cover

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

15

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

2шт.

16

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

17

123589A1

SADDLE

- hopper

1шт.

18

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, grade 2

8шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

21

439-5616

HEADED PIN,3/8" x 1"

PIN - headed, 3/8 x 1 inch

4шт.

22

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

23

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

24

123587A2

BRACKET

- mounting, outer wing hopper, left-hand (Not shown)

1шт.

25

123588A3

BRACKET

- mounting, outer wing hopper, right-hand

1шт.

26

124450A1

PLATE

- end plug

2шт.

27

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch

2шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

29

124448A1

TUBE,23 mm ID, 28.6 mm OD, 50 mm Length

- shaft bushing

1шт.

30

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

1шт.

31

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

4шт.

32

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

33

425-106

NUT,3/8"-16, Cl 5

4шт.

1264399C91

PACKAGE

KIT - latch, Includes: Refs. 9 - 12 and one kit will service eight latches

1шт.
