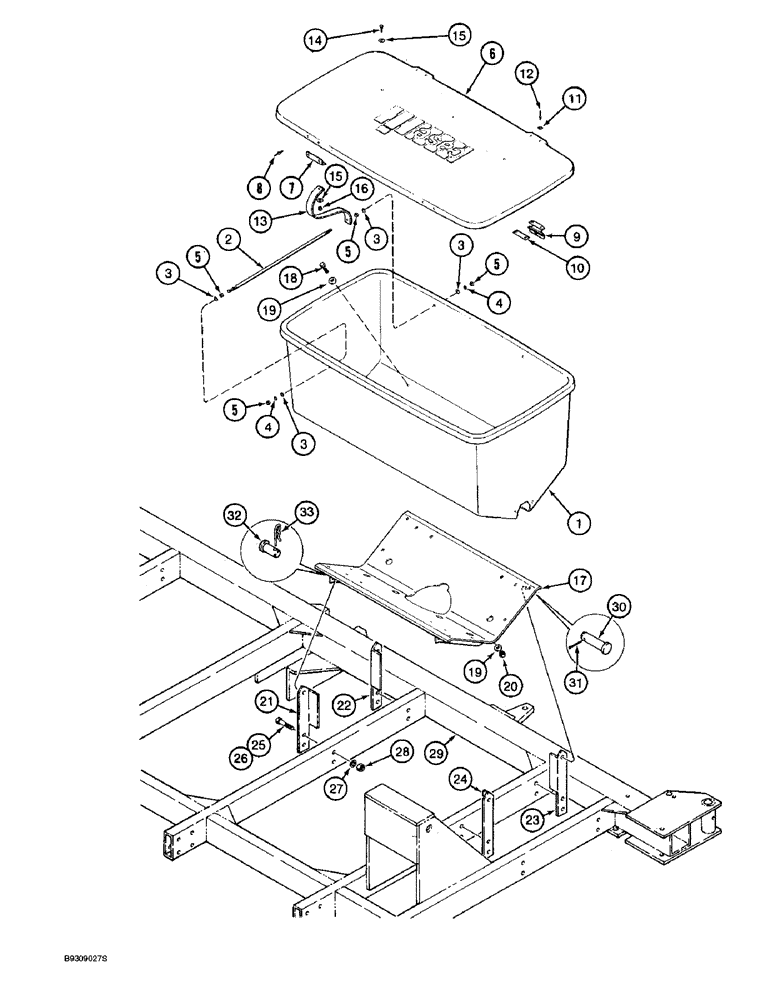

Запчасти Case IH 955 (9F-058) - DRY FERTILIZER HOPPER AND MOUNTING, 8 ROW WIDE - VERTICAL (09) - CHASSIS/ATTACHMENTS

1

137086C1

HOPPER

- two outlet, dry fertilizer

1шт.

2

137171C2

STEM

ROD - hopper spacer

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

137514C3

COVER

ASSEMBLY - hopper

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - hopper

1шт.

7

137169C1

SUPPORT

- cover

2шт.

8

151-510

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 7/16 inch, support

4шт.

9

NSS

NOT SOLD SEPARAT

LATCH - hopper

2шт.

Part of latch kit P/N 1264399C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

2шт.

Part of latch kit P/N 1264399C91

1шт.

11

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

4шт.

Part of latch kit P/N 1264399C91

1шт.

12

151-512

RIVET,Pop, 4.75mm OD x 9.53mm L

- break mandrel, 3/16 x 9/16 inch, latch retaining

4шт.

Part of latch kit P/N 1264399C91

1шт.

13

137170C1

STRAP

- hopper cover

2шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

15

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

4шт.

16

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

17

141044C1

SADDLE

- hopper

1шт.

18

424-616

BOLT,Hex, 3/8" - 16 x 1", Gr 2

- hex, 3/8 NC x 1 inch, grade 2

8шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.

20

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

8шт.

21

138192A1

ANGLE

BRACKET - mounting, left-hand angle

3шт.

22

138193A1

ANGLE

BRACKET - mounting, right-hand angle

3шт.

23

135373A1

ANGLE

BRACKET - mounting, left-hand angle, outer

1шт.

24

135375A1

ANGLE

BRACKET - mounting, right-hand angle, outer

1шт.

25

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

5шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

3шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

29

103215A2

FRAME ASSY

FRAME - center, fertilizer cart (See page 9F-43)

1шт.

30

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - headed, 3/8 x 1-1/4 inch, grade 2

2шт.

31

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

32

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch, grade 2

2шт.

33

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

1264399C91

PACKAGE

KIT - latch, Includes: Refs. 9 -12 and one kit will service eight latches

1шт.
