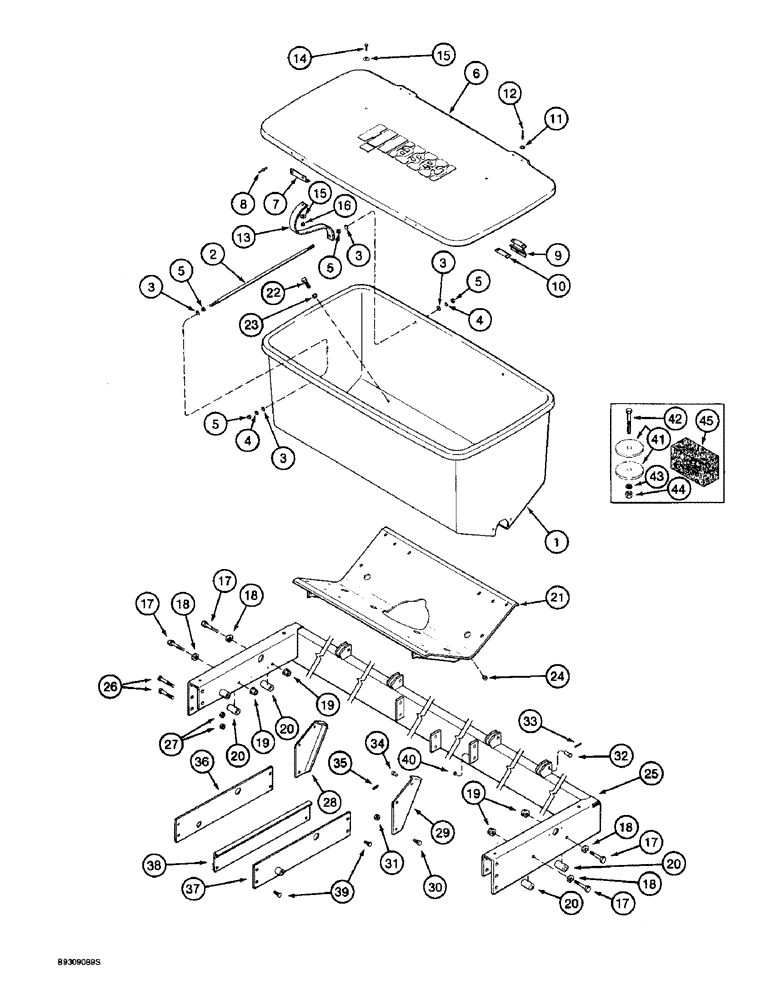

Запчасти Case IH 955 (9F-052) - DRY FERTILIZER HOPPER AND MOUNTING, 4 ROW NARROW AND WIDE - (09) - CHASSIS/ATTACHMENTS

1

137086C1

HOPPER

- two outlet, dry fertilizer, without slotted outlet, 4 row wide and 8 row narrow

1шт.

1

141135C1

HOPPER

- two outlet, dry fertilizer, with slotted outlet, 4 and 8 row narrow

1шт.

2

137171C2

STEM

ROD - hopper spacer

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

137514C3

COVER

ASSEMBLY - hopper

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - hopper

1шт.

7

137169C1

SUPPORT

- cover

2шт.

8

151-510

RIVET,Pop, 3/16" x .450"

- break mandrel, 3/16 x 7/16 inch, support

4шт.

9

NSS

NOT SOLD SEPARAT

LATCH - hopper

2шт.

Part of latch kit P/N 1264399C91

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - hopper latch

2шт.

Part of latch kit P/N 1264399C91

1шт.

11

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

4шт.

Part of latch kit P/N 1264399C91

1шт.

12

151-512

RIVET,Pop, 4.75mm OD x 9.53mm L

- break mandrel, 3/16 x 9/16 inch, latch retaining

4шт.

Part of latch kit P/N 1264399C91

1шт.

13

137170C1

STRAP

- hopper cover

2шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

15

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

4шт.

16

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

17

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

19

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

20

1976487C2

SPACER

- 27/32 x 63/64 x 2 inch

1шт.

21

141044C1

SADDLE

- hopper

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

24

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

25

90586C2

FUNNEL

FRAME - hopper, 4 row narrow and wide

1шт.

25

141313C2

FRAME

- hopper, left-hand, 8 row narrow

1шт.

25

141314C2

FRAME

- hopper, right-hand, 8 row narrow

1шт.

26

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

26

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

27

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

28

147417C1

SUPPORT

BRACKET - support, left-hand, left-hand

1шт.

29

147418C1

SUPPORT

BRACKET - support, right-hand, right-hand

1шт.

30

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

31

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

32

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - headed, 3/8 x 1-1/4 inch, grade 2

1шт.

33

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

34

439-1612

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch, grade 2

1шт.

35

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

1264399C91

PACKAGE

KIT - latch, Includes: Refs. 9 - 12, 45 and P/N 1264564C1 and one kit will service eight latches

1шт.

36

141096C1

BAR

PLATE - support, left-hand, 4 row narrow and wide

1шт.

37

141108C1

SUPPORT

PLATE - support, right-hand, 4 row narrow and wide

1шт.

38

141047C1

SUPPORT

PLATE - support, 8 row narrow

2шт.

39

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

40

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

41

480100R1

WASHER

- special, 4 and 8 row narrow

2шт.

42

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4 and 8 row narrow Hex, 5/16"-18 x 2", G5

1шт.

43

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , 4 and 8 row narrow 5/16"

1шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, 4 and 8 row narrow

1шт.

45

1279407C1

PLUG

FOAM - 2 (51) x 1-1/2 (38) x 3-1/2 inch (89 mm) long, cut from 1264564C1 bulk foam, see below

1шт.

Part of latch kit P/N 1264399C91

1шт.

1264564C1

STRIP

FOAM - bulk, 2 (51) x 1-1/2 (38) x 48 inch (1219 mm) long, used with Ref. 45 P/N 1279407C1

1шт.

Part of latch kit P/N 1264399C91

1шт.
