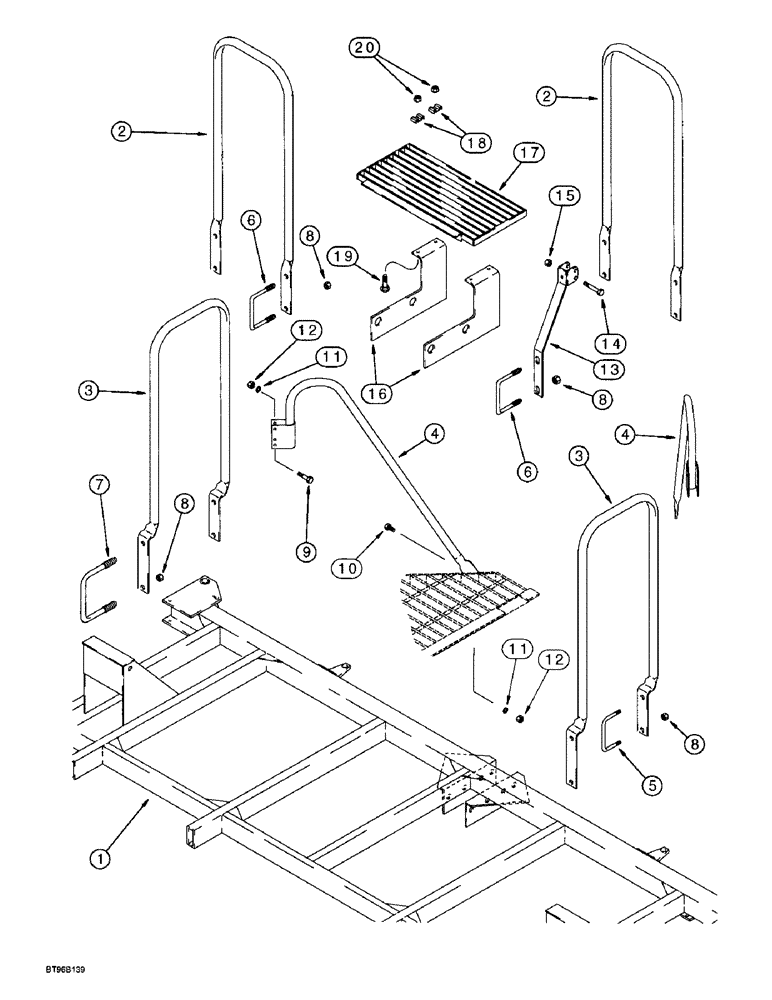

Запчасти Case IH 955 (9F-050) - WALKWAY HANDRAILS AND STEP, 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

101680A2

FRAME ASSY

FRAME - center, fertilizer cart, see page 9F-43 for mounting parts and wing frames

1шт.

2

113147A1

RAIL ASSY.

HANDRAIL - front

2шт.

3

113148A2

RAIL ASSY.

HANDRAIL - side

2шт.

4

113416A1

RAIL ASSY.

HANDRAIL - side support

2шт.

5

811627C2

U-BOLT

- 5/8 inch NC, 2 x 5 inch

2шт.

6

1279639C1

U-BOLT,5/8" - 11 x 4.96" W x 6.50" L

- 5/8 inch NC, 5 x 5 inch

4шт.

7

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

8

425-1010

NUT,5/8"-11, G5

16шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

425-106

NUT,3/8"-16, Cl 5

6шт.

13

124078A1

BRACKET

- handrail reinforcement

2шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

4шт.

15

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4шт.

16

114744A2

BRACKET

- step mounting

2шт.

17

114358A1

STEP

- platform

1шт.

18

112422A1

FASTENER

BRACKET - grating clamping

4шт.

19

434-424

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT - carriage, 1/4 NC x 1-1/2 inch

4шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.
