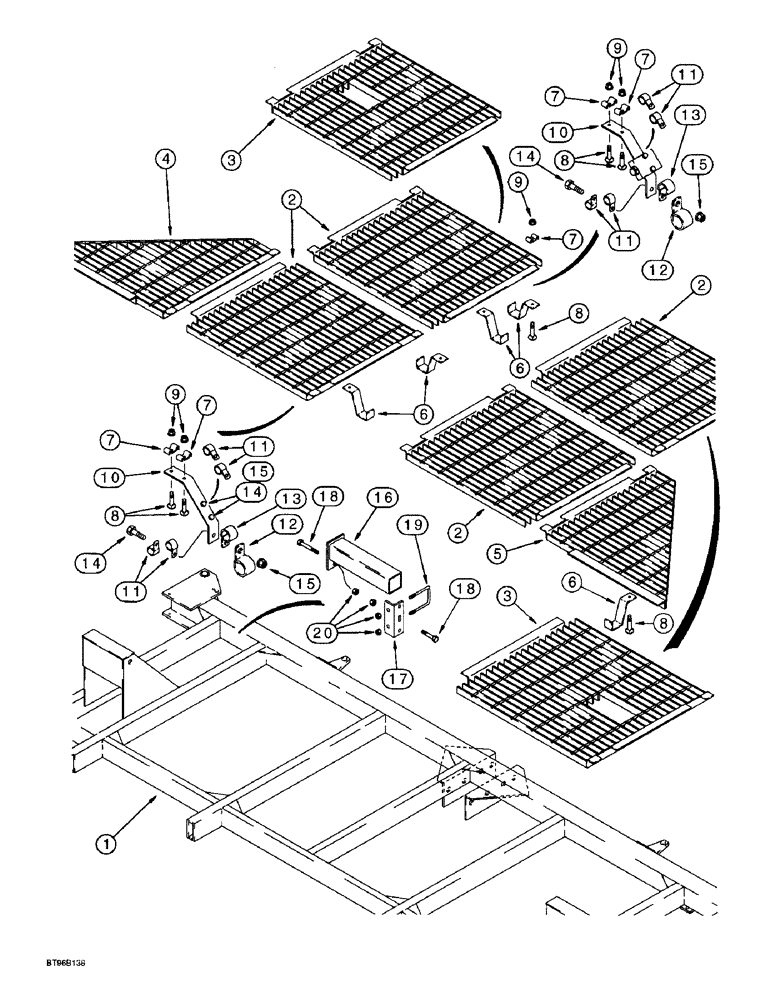

Запчасти Case IH 955 (9F-048) - WALKWAY, 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

101680A2

FRAME ASSY

FRAME - center, fertilizer cart, see page 9F-43 for mounting parts and wing frames

1шт.

2

112417A1

PLATFORM

GRATE - platform, front and rear, 2 used at rear with dry fertilizer attachment, 4 used with liquid fertilizer

2-4шт.

3

124165A1

PLATFORM

GRATE - platform, front, 2 used on planters with dry fertilizer attachment only

2шт.

4

112415A1

PLATFORM

GRATE - platform, triangular, left-hand

1шт.

5

112416A1

PLATFORM

GRATE - platform, triangular, right-hand

1шт.

6

112423A1

BRACKET

- platform clamp

12шт.

7

112422A1

FASTENER

BRACKET - grating clamping

16шт.

8

434-424

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT - carriage, 1/4 NC x 1-1/2 inch

16шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

16шт.

10

138173A2

BRACKET

- valve mounting, valve and hose clamps

2шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

8шт.

12

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

2шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

2шт.

14

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

16

139533A2

BRACKET

- mounting, auxiliary

2шт.

17

134402A1

ANGLE

SUPPORT - mounting bracket

2шт.

18

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

4шт.

19

1344524C1

U-BOLT

- 1/2 inch NC, 2-1/2 x 3-1/2 inch

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.
