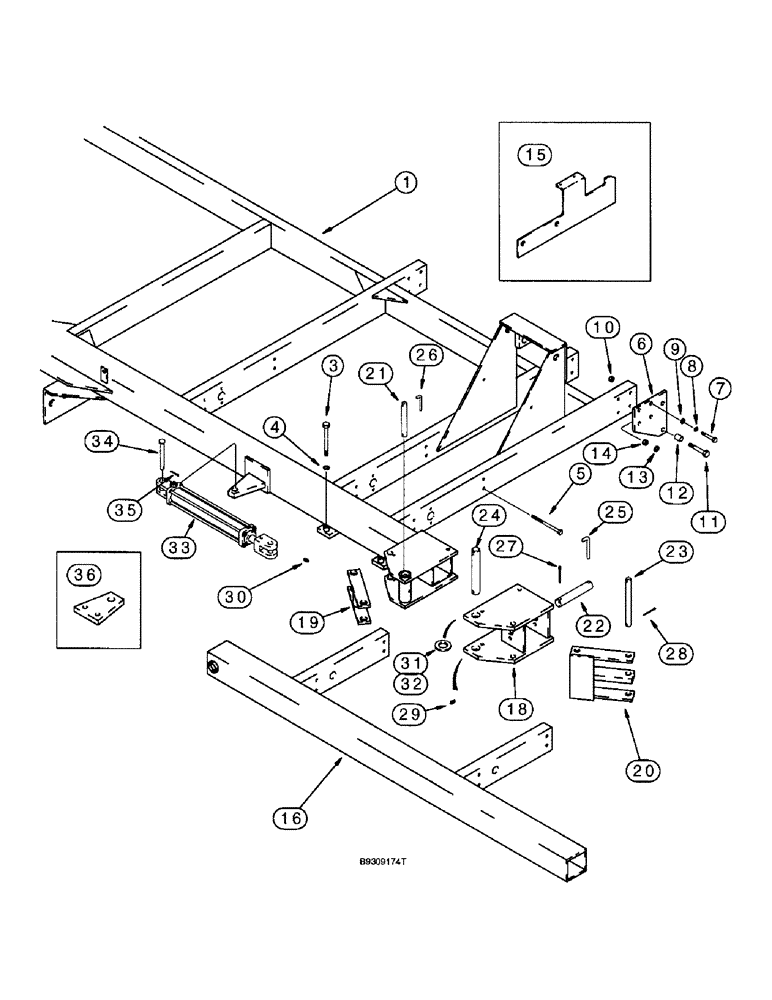

Запчасти Case IH 955 (9F-042) - DRY FERTILIZER FRAME CART, 8 ROW WIDE AND 12 ROW NARROW - (09) - CHASSIS/ATTACHMENTS

1

101680A2

FRAME ASSY

FRAME - center, fertilizer cart, 12 row narrow

1шт.

2

103215A2

FRAME ASSY

FRAME - center, fertilizer cart, 8 row wide, not shown

1шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

4шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

5

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

1шт.

6

101686A1

PLATE

- mounting, fertilizer cart

12шт.

7

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

24шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

48шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.

11

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

12шт.

12

110808A2

SPACER

- 20 x 26 x 31 mm

12шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

12шт.

15

114357A2

STOP

- wing frame

1шт.

16

101467A2

TUBE,1072, 425 mm Length

FRAME - wing, fertilizer cart, 12 row narrow

1шт.

17

102717A2

TUBE ASSY.

FRAME - wing, fertilizer cart, 8 row wide, not shown

1шт.

18

101470A1

ASSEMBLY

PLATE - wing connecting

1шт.

19

101472A1

LINKAGE

- two bar

1шт.

20

106724A2

PLATE

LINKAGE - three bar

1шт.

21

101542A1

PIN

- pivot, 1-1/2 x 9-27/32 inch, horizontal fold hinge

1шт.

22

101543A1

PIN

- pivot, 1-1/2 x 8-1/2 inch, vertical fold hinge

1шт.

23

104492A1

PIN

- pivot, 1 x 10-13/32 inch, hinge linkage

2шт.

24

104493A1

PIN

- pivot, 1 x 7-9/32 inch, hinge linkage

1шт.

25

491601R3

PIN

- pivot lock

2шт.

26

136490A1

PIN,9.5mm OD

- lock

1шт.

27

432-3248

COTTER PIN,1/2" x 3"

Pin, Split (Cotter), 1/2" x 3"

2шт.

28

432-2432

COTTER PIN,3/8" x 2"

Pin, Split (Cotter), 3/8" x 2"

5шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

30

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

31

495-81222

WASHER,1 17/32" x 2 1/4" x .120"

- flat, 1-17/32 x 2-1/4 x 1/16 inch

1шт.

32

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

33

138623A1

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke, cart frame hinge, parts list page 8-123

1шт.

34

439-51648

HEADED PIN,1" x 3"

PIN - headed, 1 x 3 inch

1шт.

35

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

36

1995897C2

PLATE

BRACKET - cylinder anchor

1шт.
