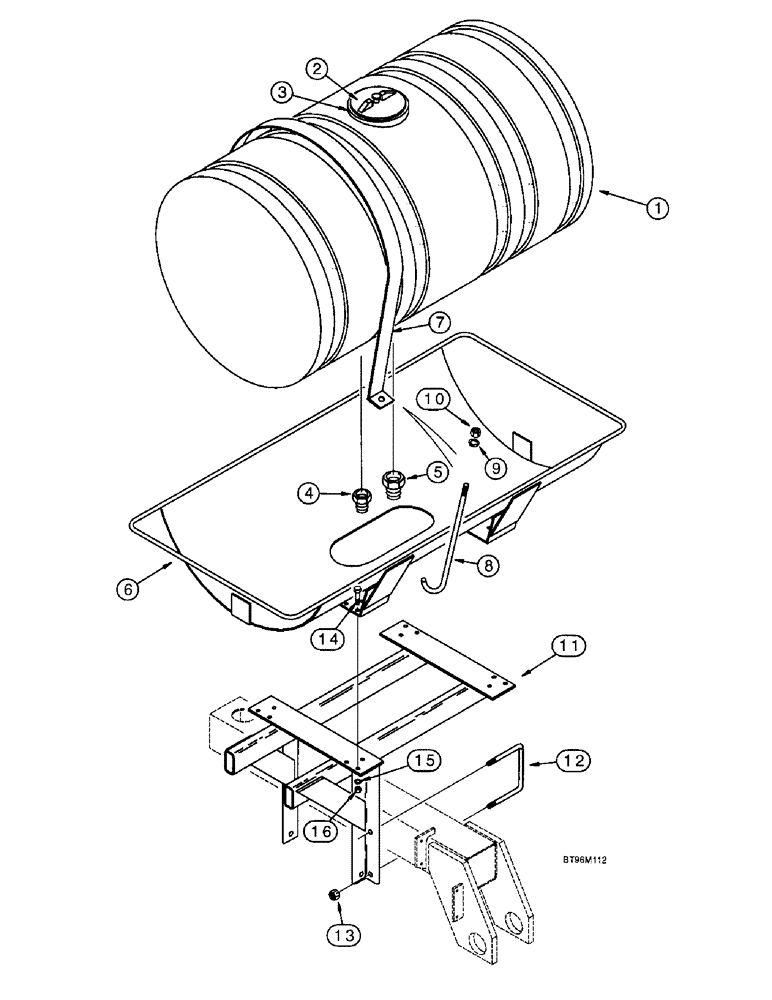

Запчасти Case IH 955 (9F-040) - LIQUID FERTILIZER TANK AND MOUNTING, 12/23 SOLID ROW CROP - (09) - CHASSIS/ATTACHMENTS

113723A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 300 gallon

2шт.

1

NSS

NOT SOLD SEPARAT

TANK - liquid fertilizer (Order 113723A1)

1шт.

2

113717A1

COVER

LID - tank

1шт.

3

113718A1

COLLAR

- tank

1шт.

4

117974A1

FITTING

- 3/4 inch bulkhead, special

1шт.

5

117976A1

FITTING

- 1-1/4 inch bulkhead, special

1шт.

6

113721A1

SADDLE

- liquid fertilizer tank

2шт.

7

109685A2

STRAP

- tank

4шт.

8

113720A1

BOLT

- hook

8шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

196683A1

SUPPORT

- tank mounting, center main frame

2шт.

12

147451C2

U-BOLT,3/4" - 10 x 217.45mm

- 3/4 inch NC

4шт.

13

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

24шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

24шт.
