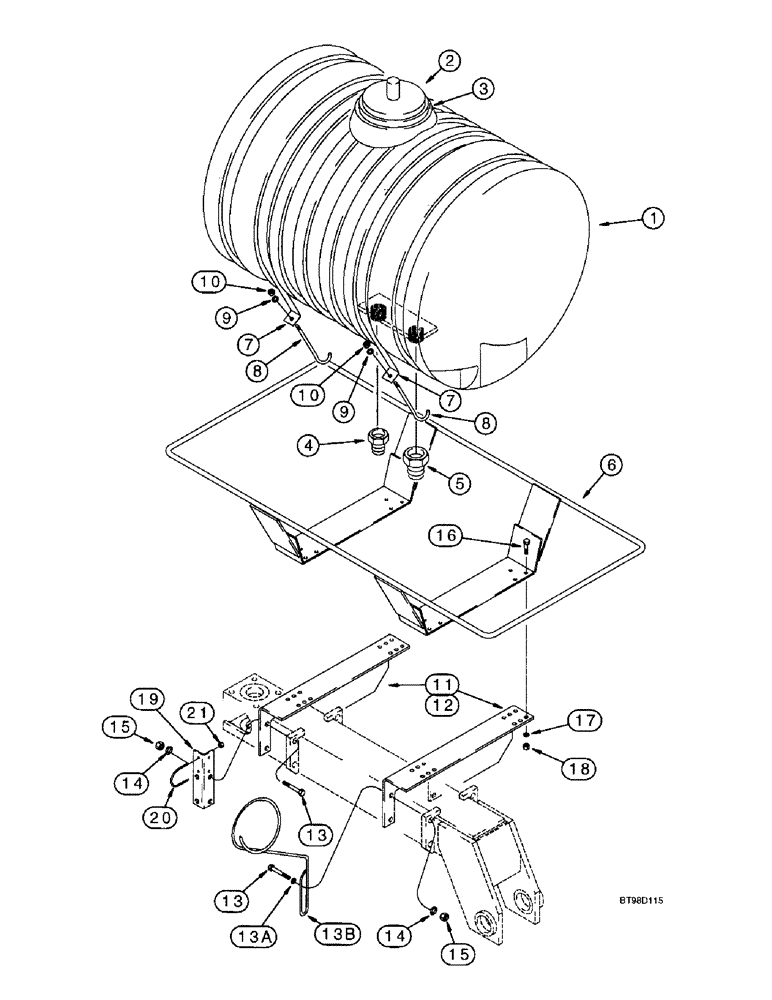

Запчасти Case IH 955 (9F-038) - LIQUID FERTILIZER TANK AND MOUNTING, 12 AND 16 ROW NARROW - (09) - CHASSIS/ATTACHMENTS

109683A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 200 gallon, 12 row narrow

1шт.

113723A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 300 gallon, 16 row narrow

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - liquid fertilizer (Order 109683A1 or 113723A1)

1шт.

2

113717A1

COVER

LID - tank

1шт.

3

113718A1

COLLAR

- tank

1шт.

4

117974A1

FITTING

- 3/4 inch bulkhead, special

1шт.

5

117976A1

FITTING

- 1-1/4 inch bulkhead, special

1шт.

6

113719A1

SADDLE

- liquid fertilizer tank, used with 109683A1, 200 gallon tank

1шт.

6

113721A1

SADDLE

- liquid fertilizer tank, used with 113723A1, 300 gallon tank

1шт.

7

109685A2

STRAP

- tank

2шт.

8

113720A1

BOLT

- hook

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

113035A1

BRACKET

- saddle mounting, left-hand, not shown

2шт.

12

113036A1

BRACKET

- saddle mounting, right-hand

2шт.

13

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, Used when liquid fertilizer tank is installed

8шт.

13

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, Used when liquid fertilizer tank is not installed

4шт.

13a

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

4шт.

13b

308866A1

ROD

SUPPORT - seed tube, at main frame hinge

2шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

19

128172A2

ANGLE

SUPPORT - liquid fertilizer hose, right-hand side

1шт.

20

1264087C1

U-BOLT

UR .313 2.188W 3.13D

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
