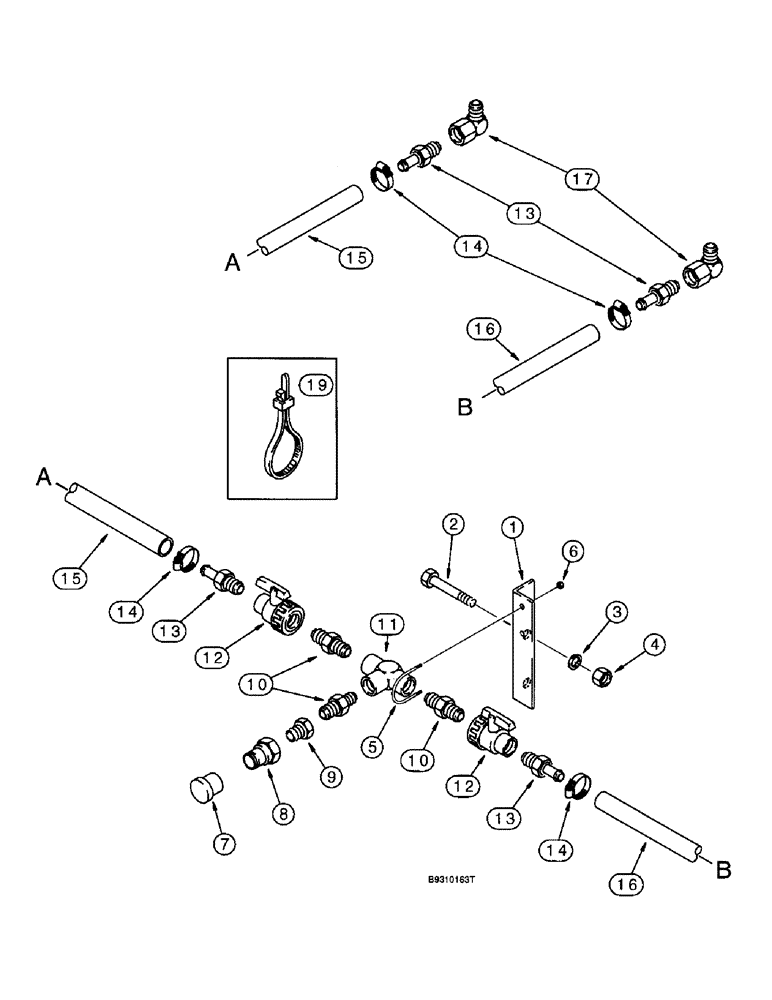

Запчасти Case IH 955 (9F-032) - LIQUID FERTILIZER CENTRAL FILL SYSTEM, 12 ROW AND 16 ROW (09) - CHASSIS/ATTACHMENTS

1

128172A1

ANGLE

BRACKET - mounting

1шт.

2

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

3

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

5

1264087C1

U-BOLT

UR .313 2.188W 3.13D

1шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

1264066C1

CAP

COVER - dust

1шт.

8

1264069C1

FITTING

ADAPTER - straight, special

1шт.

9

1264071C1

FITTING

REDUCER - hex, special

1шт.

10

1264070C1

FITTING

NIPPLE - straight, special

3шт.

11

1264067C1

FITTING

TEE - female, special

1шт.

12

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

2шт.

13

1264072C1

FITTING

- barbed, straight, special

4шт.

14

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

4шт.

15

NSS

NOT SOLD SEPARAT

HOSE - 1-1/2 ID x 23-3/4 inch, cut from 1264065C1, see below

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - 1-1/2 ID x 122-1/16 inch, cut from 1264065C1, see below

1шт.

17

1264068C1

ELBOW

- 90 degree, special

2шт.

18

1254278C1

PRODUCT GRAPHIC,Important Be sure vent hole in tank cap is kept open during fill

DECAL - Important, be sure vent hole in tank, not shown, see page 9F-117

1шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

1264065C1

HOSE

- bulk, 38 (1-1/2) ID x 30480 mm (1200 inch) long

1шт.
