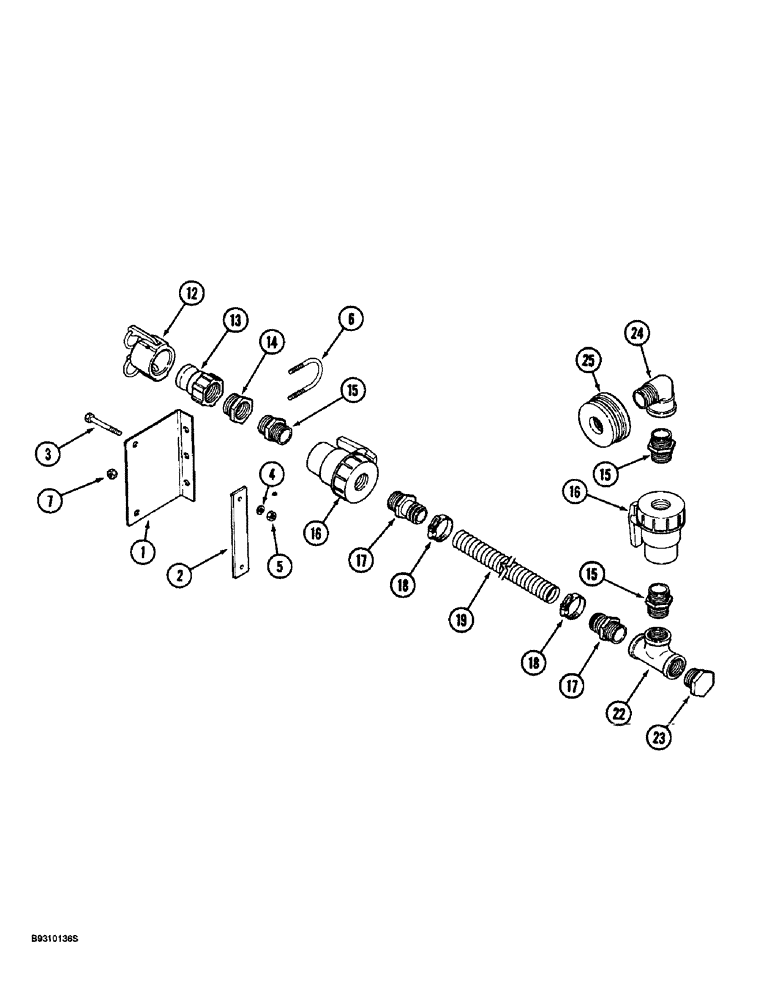

Запчасти Case IH 955 (9F-026) - LIQUID FERTILIZER CENTRAL FILL SYSTEM, ALL RIGID PLANTERS (09) - CHASSIS/ATTACHMENTS

1

1995502C1

BRACKET

- mounting

1шт.

2

1261430C1

BAR

PLATE - backup, includes decal

1шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

4

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

1264087C1

U-BOLT

UR .313 2.188W 3.13D

1шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

12

1264066C1

CAP

COVER - dust

1шт.

13

1264069C1

FITTING

ADAPTER - straight, special

1шт.

14

1264071C1

FITTING

REDUCER - hex, special

1шт.

15

1264070C1

FITTING

NIPPLE - straight, special

3шт.

16

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

2шт.

17

1264072C1

FITTING

- barbed, straight, special

2шт.

18

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

19

NSS

NOT SOLD SEPARAT

HOSE - spiral, 1-1/2 ID x 132 inch, cut from 1264065C1, see below

1шт.

22

1264067C1

FITTING

TEE - female, special

1шт.

23

1254380C2

PLUG,Hex Hd, 1 1/4" NPT, Nylon

- hex, special, if used

1шт.

24

1264068C1

ELBOW

- 90 degree, special

1шт.

25

1254377C1

FITTING

- nylon, 4 piece, special

1шт.

1264065C1

HOSE

- bulk, 38 (1-1/2) ID x 30480 mm (1200 inch) long

1шт.
