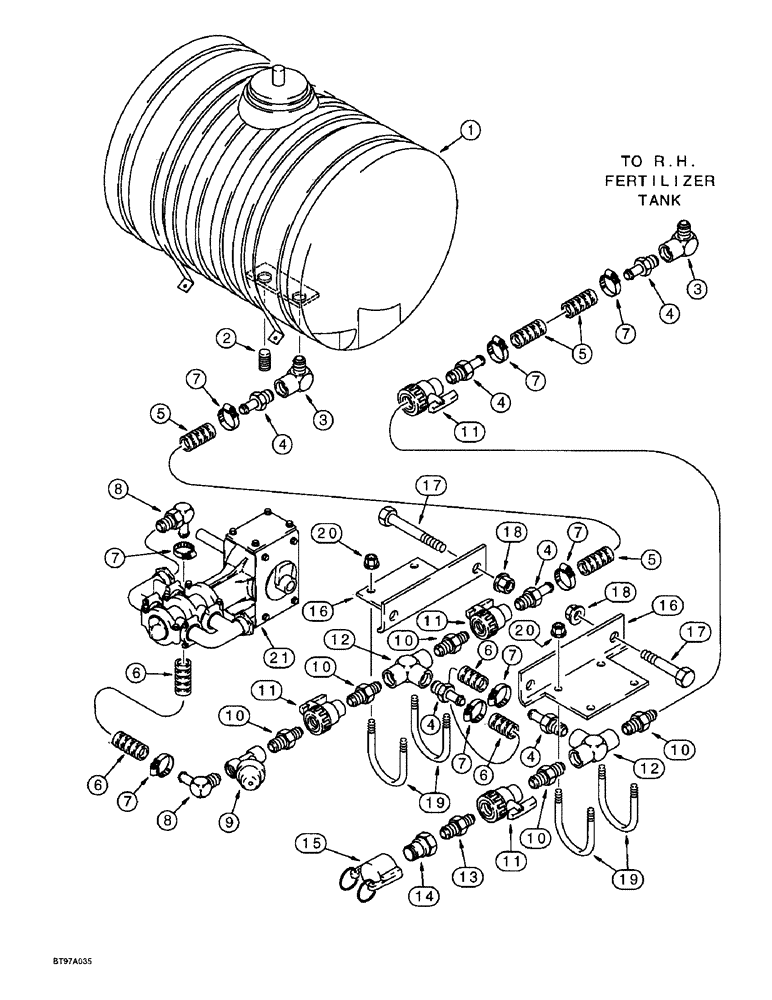

Запчасти Case IH 955 (9F-020) - LIQUID FERTILIZER PISTON PUMP SYSTEM, TANK AND SUCTION LINES (09) - CHASSIS/ATTACHMENTS

1

113723A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 300 gallon

2шт.

See page 9F-41, items 1 through 16, for tank components, supports and mounting brackets.

1шт.

2

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT

2шт.

3

1264068C2

ELBOW

- 90 degree, special

2шт.

4

1264072C2

FITTING

- barbed, straight, special

6шт.

5

REF

INSTRUCTION

HOSE - 1800 mm (70-7/8 inch) long, cut from 1264065C1 bulk hose, see below

2шт.

6

REF

INSTRUCTION

HOSE - 1150 mm (45-1/4 inch) long, cut from 1264065C1 bulk hose, see below

2шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

10шт.

8

225447A1

ELBOW

- 90 degree, hose barb, special, at pump inlet

2шт.

9

225446A2

STRAINER ASSY.

FITTING - strainer, special

1шт.

10

1264070C2

FITTING

NIPPLE - straight, special

6шт.

11

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

4шт.

12

1264067C2

TEE

- female, special

2шт.

13

1264071C2

FITTING

REDUCER - hex, special

2шт.

14

241914A1

FITTING

ADAPTER - special, quick coupler

1шт.

15

1264066C1

CAP

COVER - dust

1шт.

16

257060A1

BRACKET

- mounting, fertilizer hose to platform support

2шт.

17

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

4шт.

18

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

4шт.

19

1264087C1

U-BOLT

UR .313 2.188W 3.13D

4шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

21

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer, per Case number 12330101, this part is NSS

1шт.

1264065C1

HOSE

- bulk, 38 (1-1/2) ID x 30480 mm (1200 inch) long

1шт.
